Graphic LCD

Resolution Photos Part No. Outline Dimension
WxHxT (mm)		 Viewing Area
WxH (mm)		 Dot Pitch
WxH (mm)		 Dot Size
WxH (mm)		 Backlight Interface Voltage
(V)		 Controller

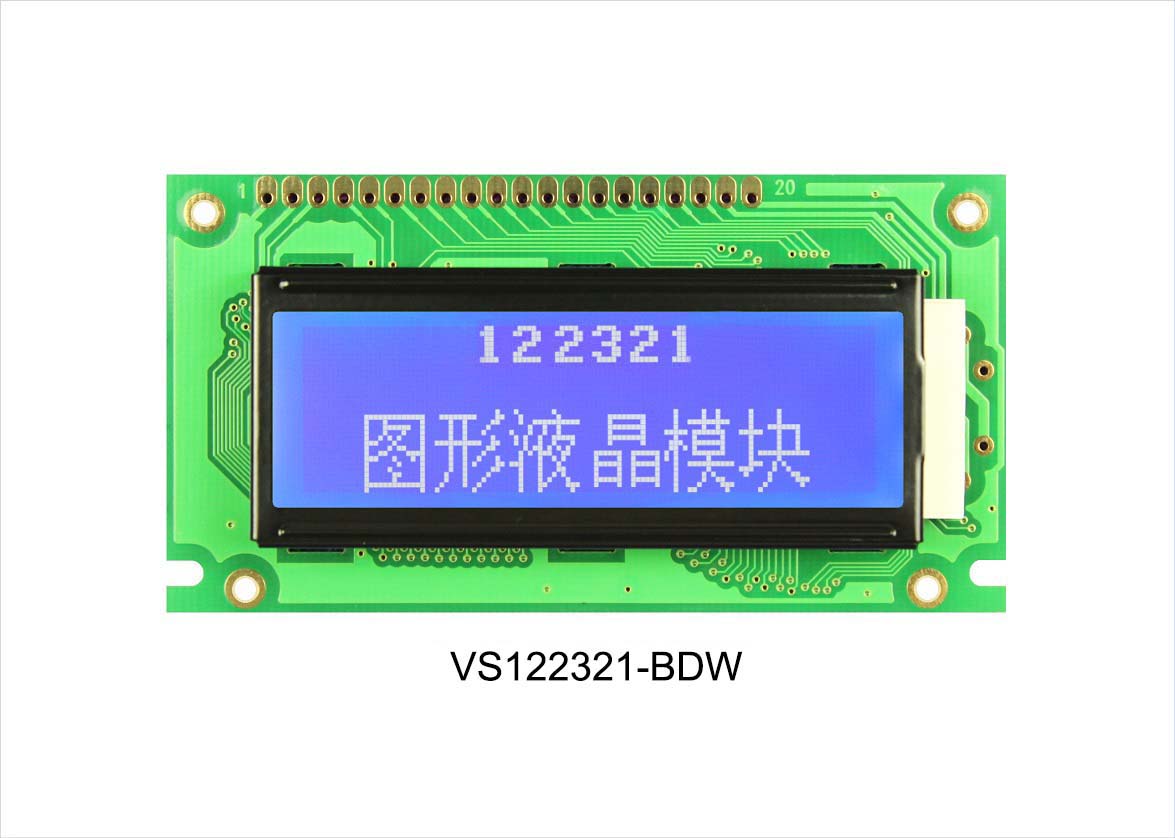

122x32 VS122321-DY 84.0x44.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 Y-G 8-BIT 68/80 5 SBN1661G_M02
122x32 VS122321-DW 84.0x44.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 White 8-BIT 68/80 5 SBN1661G_M02
122x32 VS122322-DY 84.0x44.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 Y-G 8-BIT 6800 5 SBN1661G_M18
122x32 VS122322-DW 84.0x44.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 White 8-BIT 6800 5 SBN1661G_M18
122x32 VS122324-DY 74.0x40.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 Y-G 4/8-BIT 6800, SPI 5 ST7920
122x32 VS122324-DW 74.0x40.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 White 4/8-BIT 6800, SPI 5 ST7920

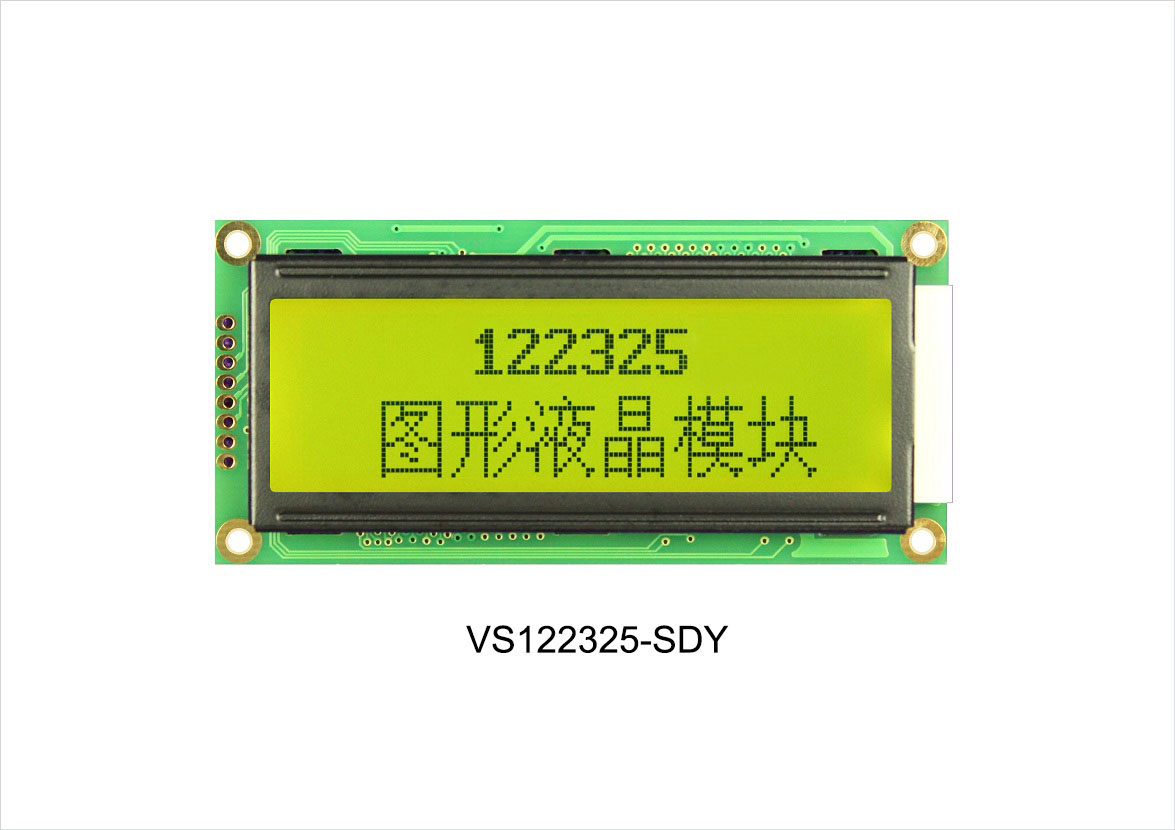

122x32 VS122325-DY 74.0x35.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 Y-G SPI 5 ST7920
122x32 VS122325-DW 74.0x35.0x13.5 60.5x18.5 0.44x0.49 0.40x0.45 White SPI 5 ST7920

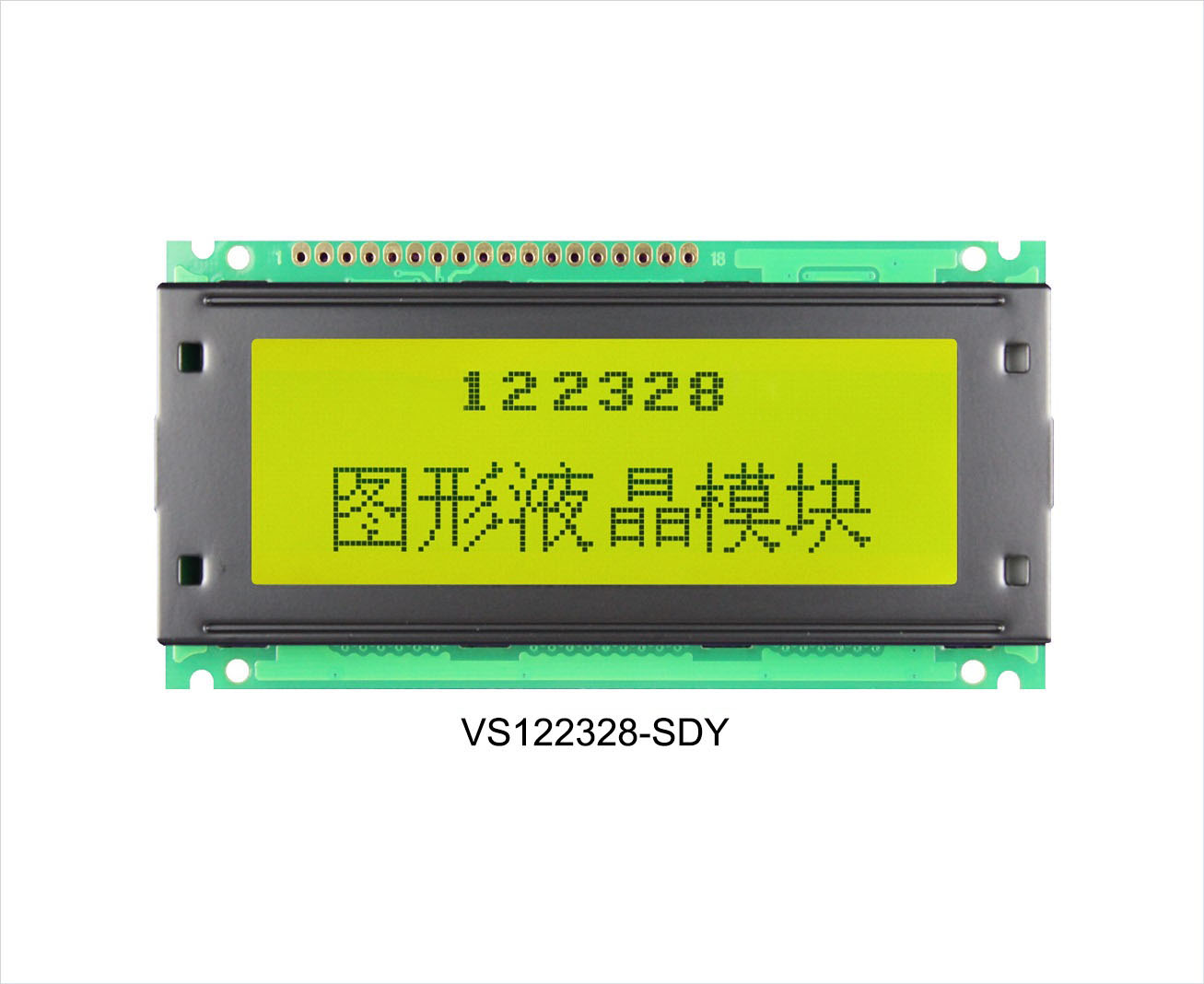

122x32 VS122328-DY 98.0x50.0x13.5 76.0x26.0 0.60x0.60 0.55x0.55 Y-G 8-BIT 6800 5 SBN1661G_M18
122x32 VS122328-DW 98.0x50.0x13.5 76.0x26.0 0.60x0.60 0.55x0.55 White 8-BIT 6800 5 SBN1661G_M18
122x32 VS122329-DW 75.0x26.8x14.0 61.0x19.0 0.46x0.51 0.42x0.47 White 8-BIT 6800 5 SBN1661G_M18
122x32 VS12232A-DY 98.0x60.0x14.0 77.0x26.0 0.60x0.60 0.55x0.55 Y-G 8-BIT 6800 5 SBN1661G_M18
122x32 VS12232A-DW 98.0x60.0x14.0 77.0x26.0 0.60x0.60 0.55x0.55 White 8-BIT 6800 5 SBN1661G_M18
122x32 VS12232B-DY 74.0x27.4x13.5 60.5x18.5 0.44x0.49 0.40x0.45 Y-G SPI 5 ST7920
122x32 VS12232B-DW 74.0x27.4x13.5 60.5x18.5 0.44x0.49 0.40x0.45 White SPI 5 ST7920

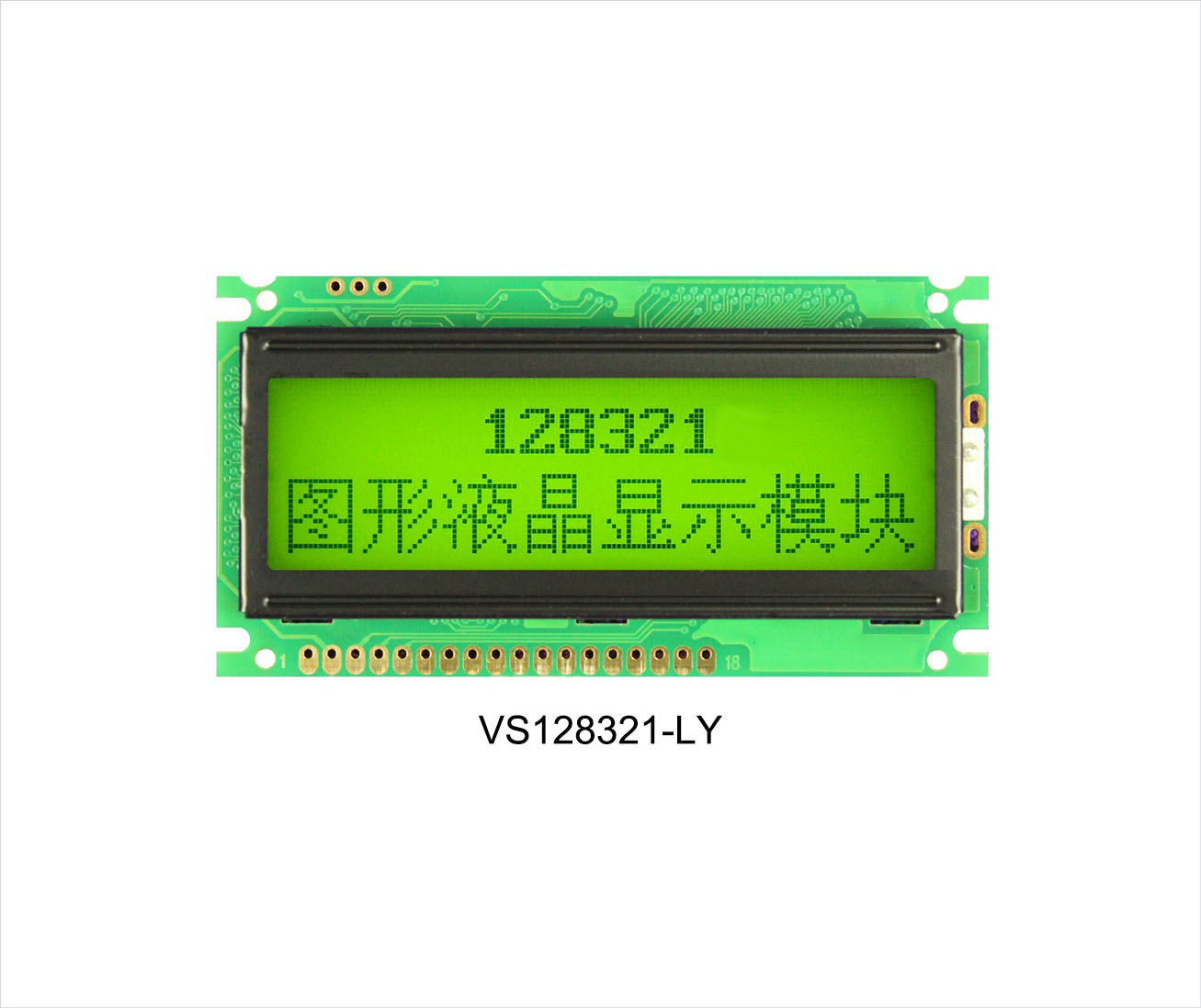

128x32 VS128321-LY 84.0x44.0x14.5 70.0x20.0 0.52x0.52 0.48x0.48 Y-G 4/8-BIT 6800, SPI 5 ST7920

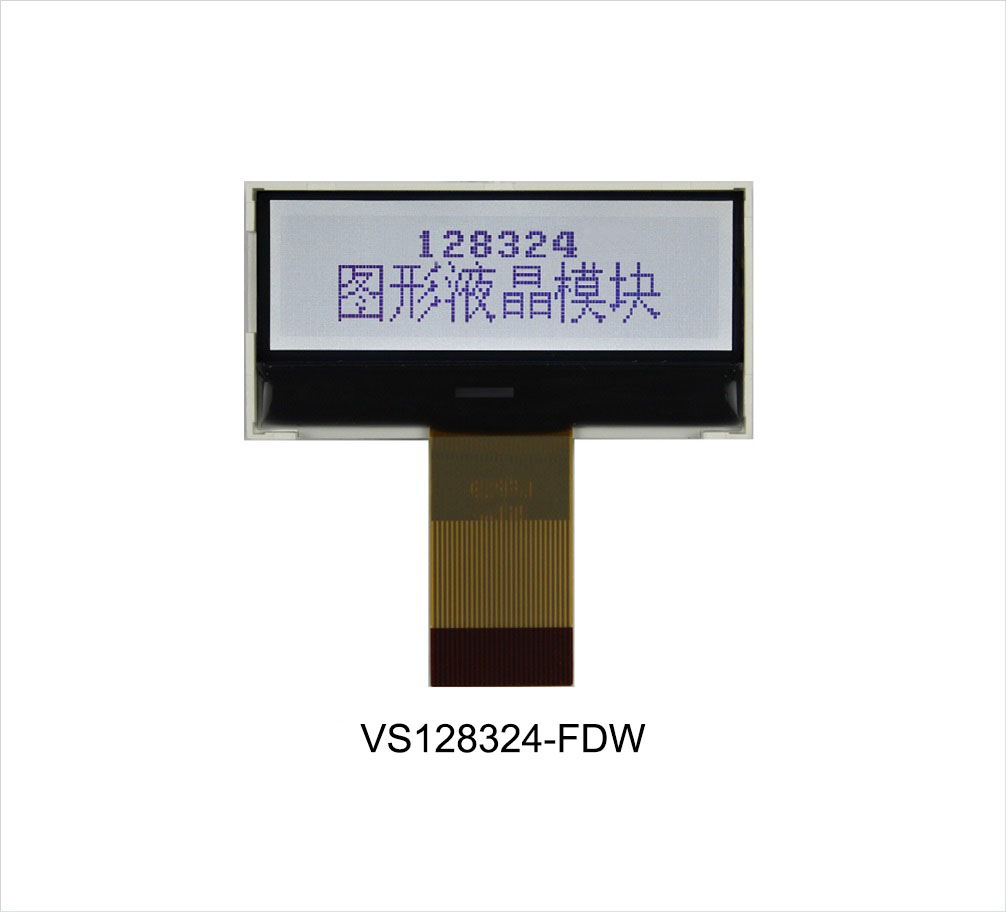

128x32 VS128324-DW 51.0x26.0x8.5 46.0x15.0 0.34x0.38 0.32x0.36 White 8-BIT 8080, SPI 5 ST7565R
132x32 VS132321-R 55.0x28.24x8.7 52.0x15.0 0.365x0.415 0.345x0.395 - SPI 5 ST7565R
132x32 VS132321-DW 55.0x31.0x8.7 52.0x15.0 0.365x0.415 0.345x0.395 White SPI 5 ST7565R
144x32 VS144321-DY 80.0x36.0x12.5 64.6x16.0 0.42x0.42 0.38x0.38 Y-G 4/8-BIT 6800, SPI 5 ST7920

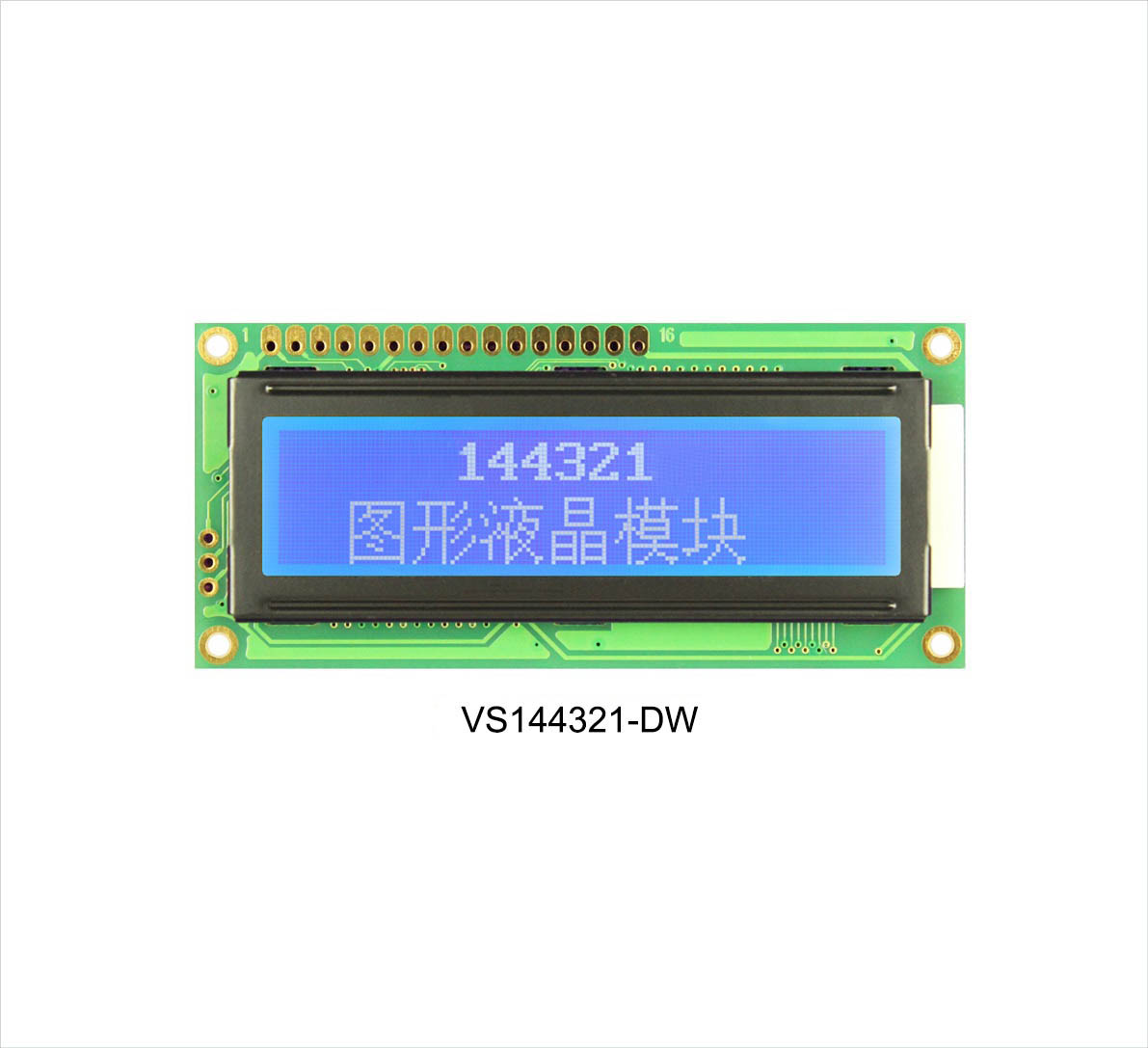

144x32 VS144321-DW 80.0x36.0x12.5 64.6x16.0 0.42x0.42 0.38x0.38 White 4/8-BIT 6800, SPI 5 ST7920
160x32 VS160321-DW 122.0x44.0x11.5 99.0x24.0 0.59x0.60 0.55x0.56 White 4/8-BIT 6800, SPI 5 ST7920
160x32 VS160323-DW 116.0x44.0x14.0 99.0x24.0 0.59x0.60 0.55x0.56 White 8-BIT 68/80 5 SBN0080G_S02

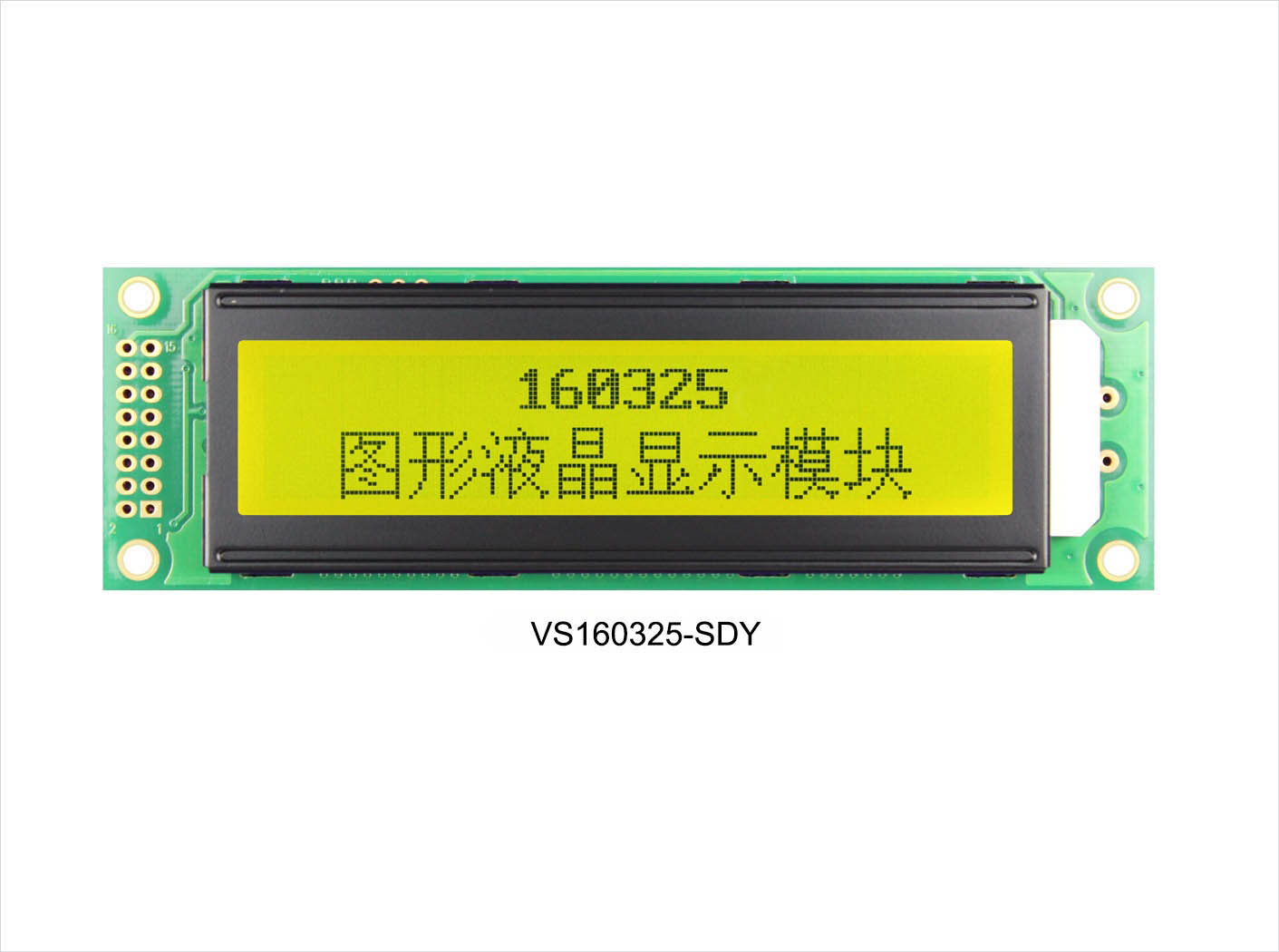

160x32 VS160325-DY 116.0x36.0x13.5 83.0x18.6 0.48x0.48 0.44x0.44 Y-G 4/8-BIT 6800, SPI 5 ST7920
160x32 VS160325-DW 116.0x36.0x13.5 83.0x18.6 0.48x0.48 0.44x0.44 White 4/8-BIT 6800, SPI 5 ST7920
128x64 VS128641-DY 78.0x70.0x13.0 62.0x44.0 0.44x0.60 0.40x0.56 Y-G 8-BIT 6800 5 NT7108C
128x64 VS128641-DW 78.0x70.0x13.0 62.0x44.0 0.44x0.60 0.40x0.56 White 8-BIT 6800 5 NT7108C

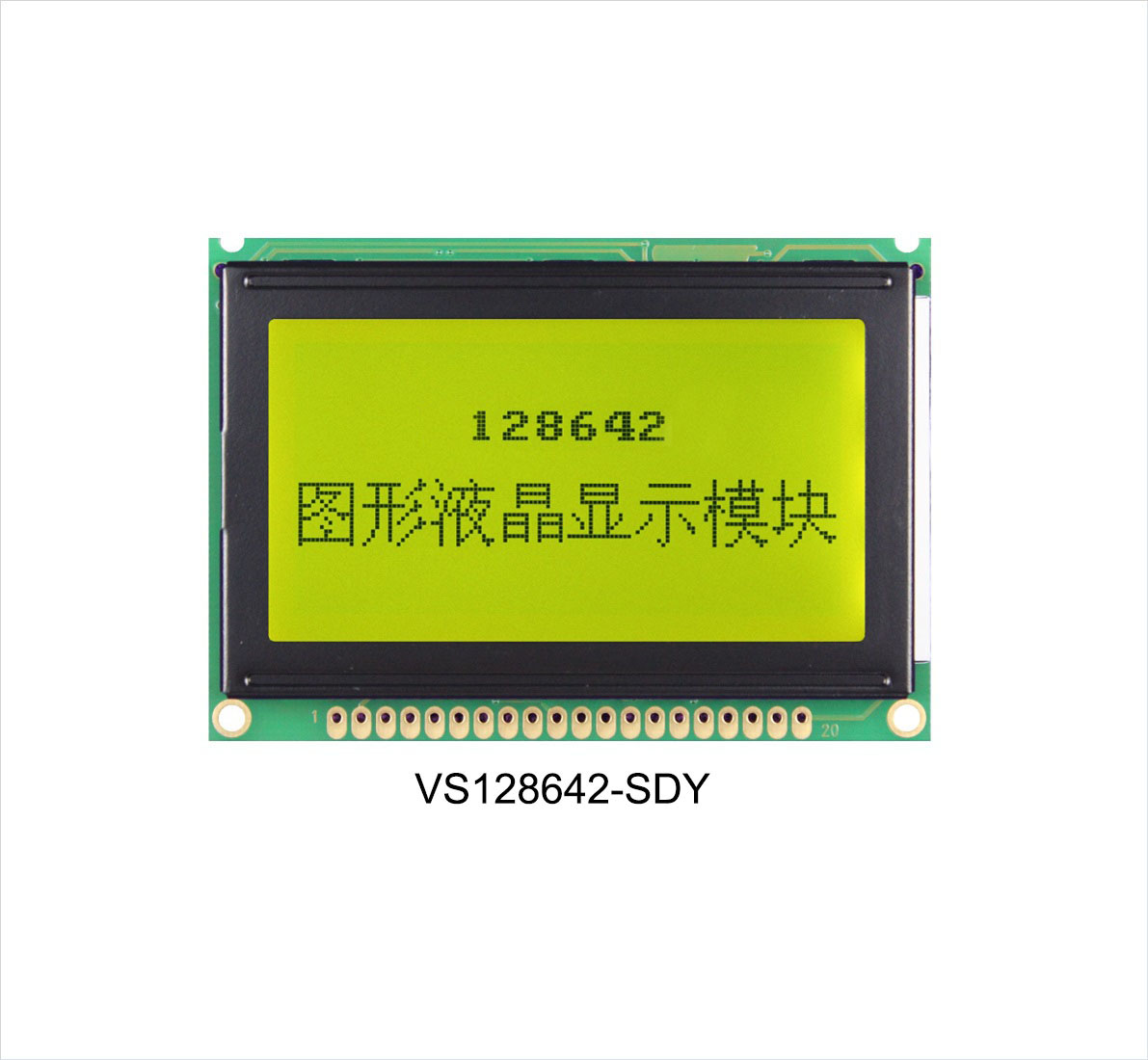

128x64 VS128642-DY 75.0x52.7x9.5 60.0x32.6 0.43x0.43 0.40x0.40 Y-G 8-BIT 6800 5 NT7108C
128x64 VS128642-DW 75.0x52.7x11.5 60.0x32.6 0.43x0.43 0.40x0.40 White 8-BIT 6800 5 NT7108C

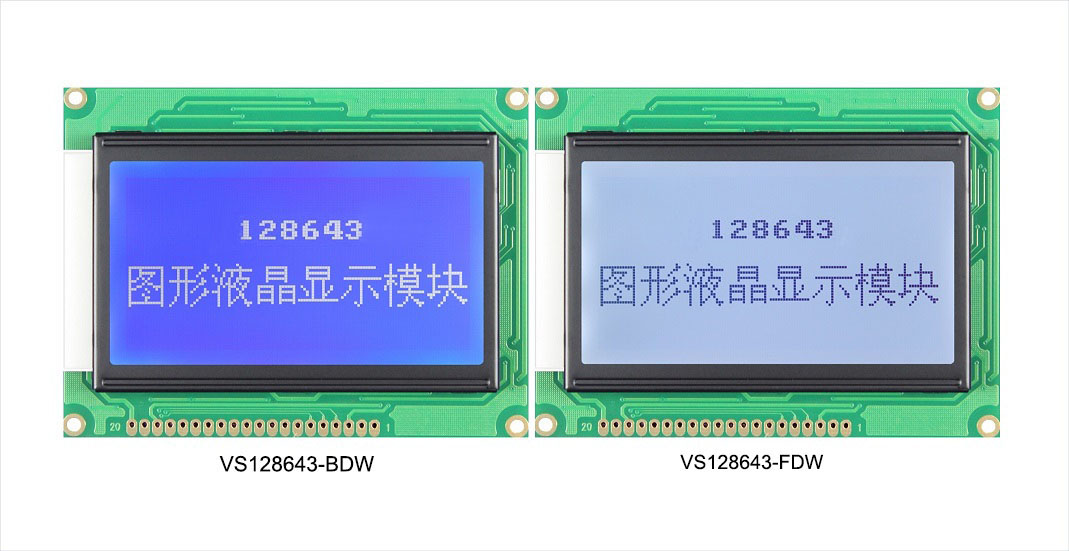

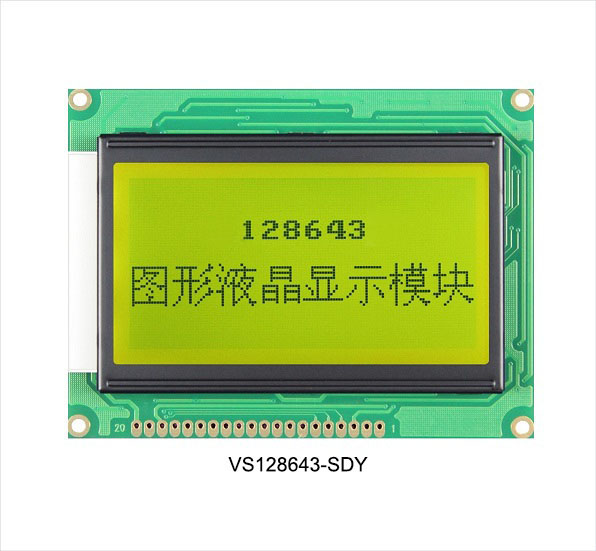

128x64 VS128643-DY 93.0x70.0x13.5 72.0x39.0 0.52x0.52 0.48x0.48 Y-G 8-BIT 6800 5 NT7108C
128x64 VS128643-DW 93.0x70.0x13.5 72.0x39.0 0.52x0.52 0.48x0.48 White 8-BIT 6800 5 NT7108C
128x64 VS128644-DY 78.0x70.0x13.0 62.0x44.0 0.44x0.60 0.40x0.56 Y-G 8-BIT 8080 5 T6963C
128x64 VS128644-DW 78.0x70.0x13.0 62.0x44.0 0.44x0.60 0.40x0.56 White 8-BIT 8080 5 T6963C

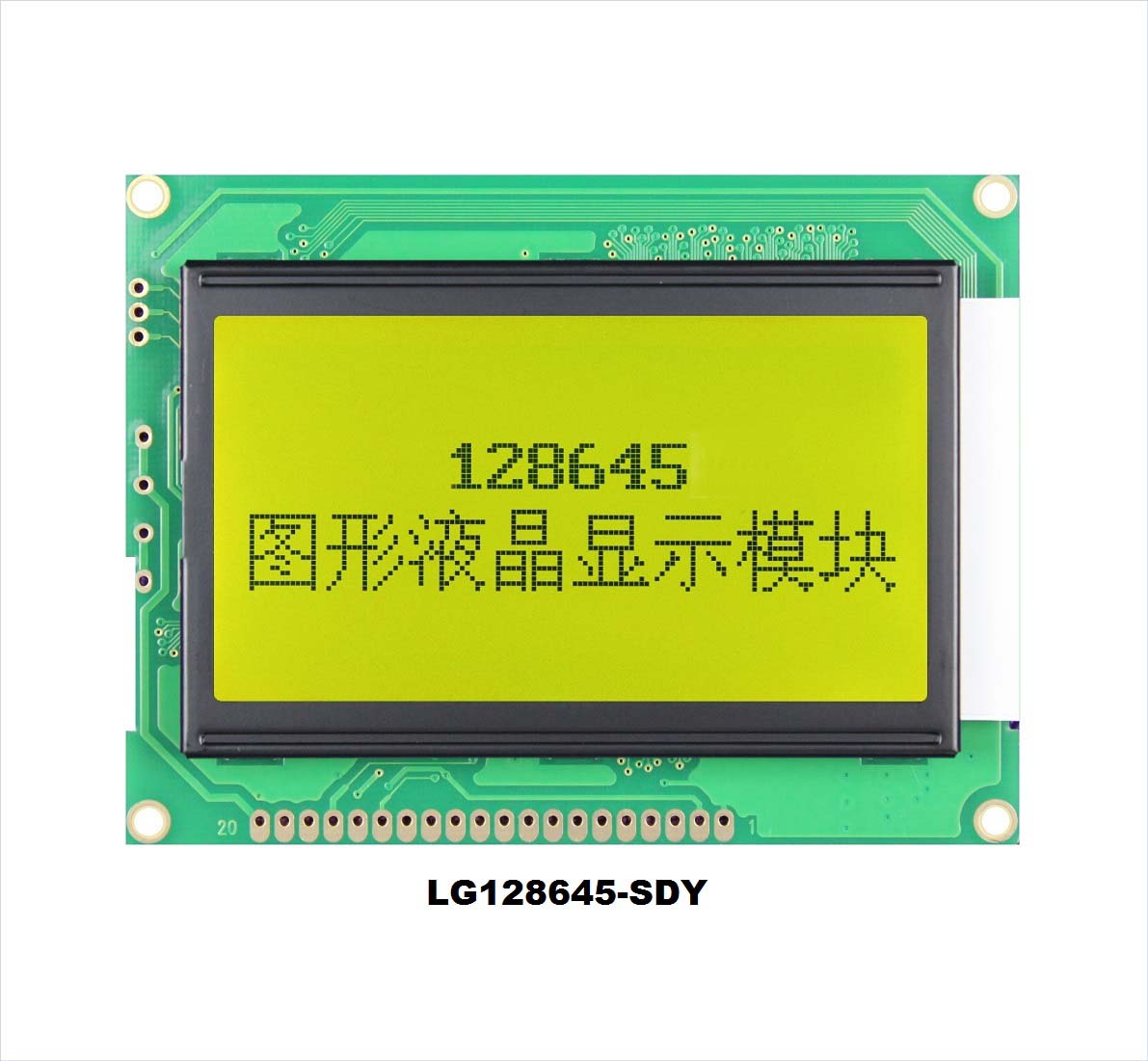

128x64 VS128645-DY 93.0x70.0x13.5 72.0x39.0 0.52x0.52 0.48x0.48 Y-G 4/8-BIT 6800, SPI 5 ST7920
128x64 VS128645-DW 93.0x70.0x13.5 72.0x39.0 0.52x0.52 0.48x0.48 White 4/8-BIT 6800, SPI 5 ST7920
128x64 VS128646-DW 66.0x58.0x10.5 57.0x37.0 0.43x0.55 0.39x0.51 White 8-BIT 6800 5 NT7108C
128x64 VS128648-DY 113.0x65.0x13.5 72.0x39.0 0.52x0.52 0.48x0.48 Y-G 8-BIT 6800 5 NT7108C
128x64 VS128648-DW 113.0x65.0x13.5 72.0x39.0 0.52x0.52 0.48x0.48 White 8-BIT 6800 5 NT7108C
128x64 VS128649-DW 78.0x70.0x13.0 62.0x44.0 0.438x0.60 0.378x0.54 White 4/8-BIT 6800, SPI 5 ST7920
128x64 VS12864A-DY 77.0x56.0x9.5 60.0x32.6 0.43x0.43 0.40x0.40 Y-G 8-BIT 6800 5 NT7108C
128x64 VS12864A-DW 77.0x56.0x11.5 60.0x32.6 0.43x0.43 0.40x0.40 White 8-BIT 6800 5 NT7108C
128x64 VS12864B-DW 54.0x50.0x8.7 43.5x29.0 0.32x0.39 0.28x0.35 White
 		 8-BIT 6800 5 NT7108C
128x64 VS12864E-DW 64.6x44.6x8.5 58.6x31.0 0.43x0.43 0.41x0.41 White 8-BIT 8080, SPI 3.3 ST7565P

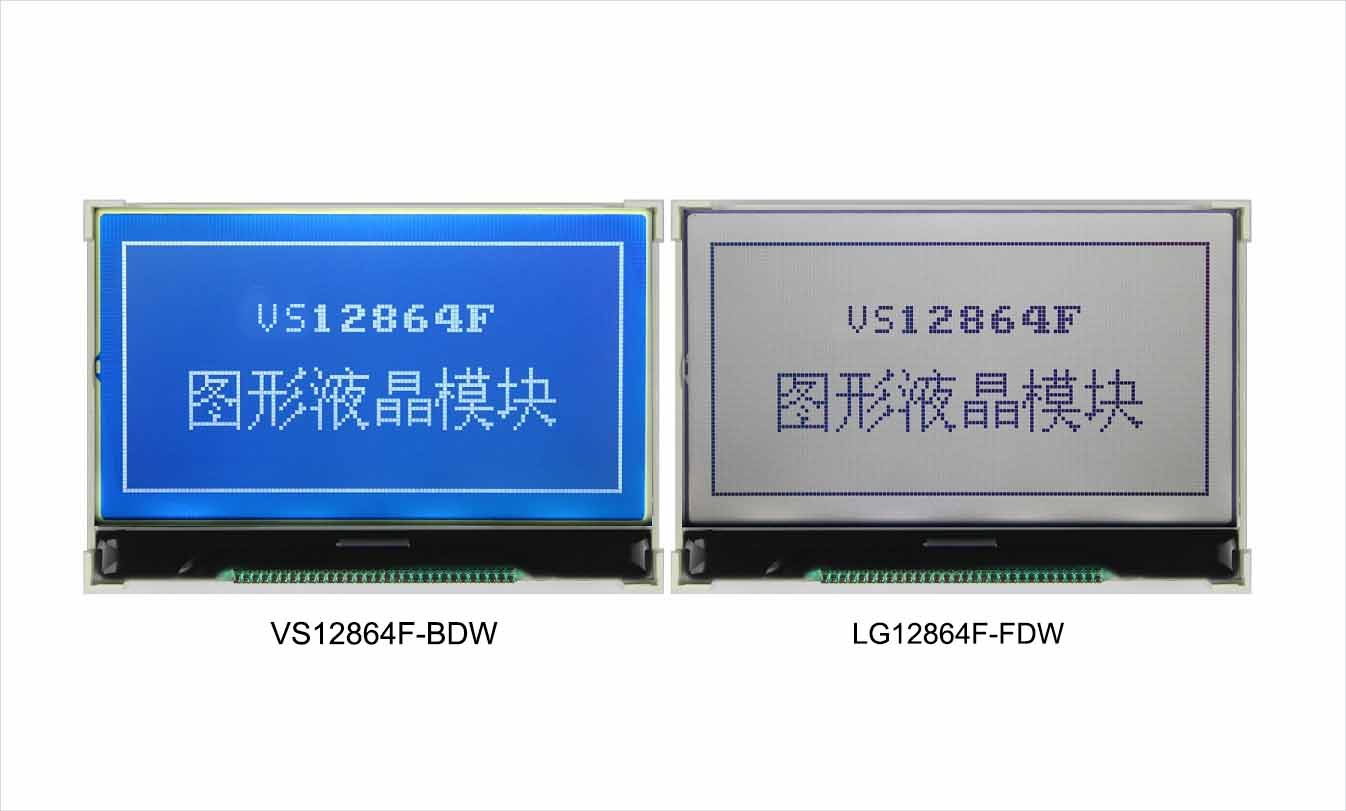

128x64 VS12864F-DW 77.4x52.4x11.6 70.0x40.0 0.52x0.52 0.48x0.48 White 8-BIT 68/80, SPI 3.3 ST7565P
128x64 VS12864F-DW-TP 77.4x52.4x11.6 70.0x40.0 0.52x0.52 0.48x0.48 White 8-BIT 68/80, SPI 3.3 ST7565P

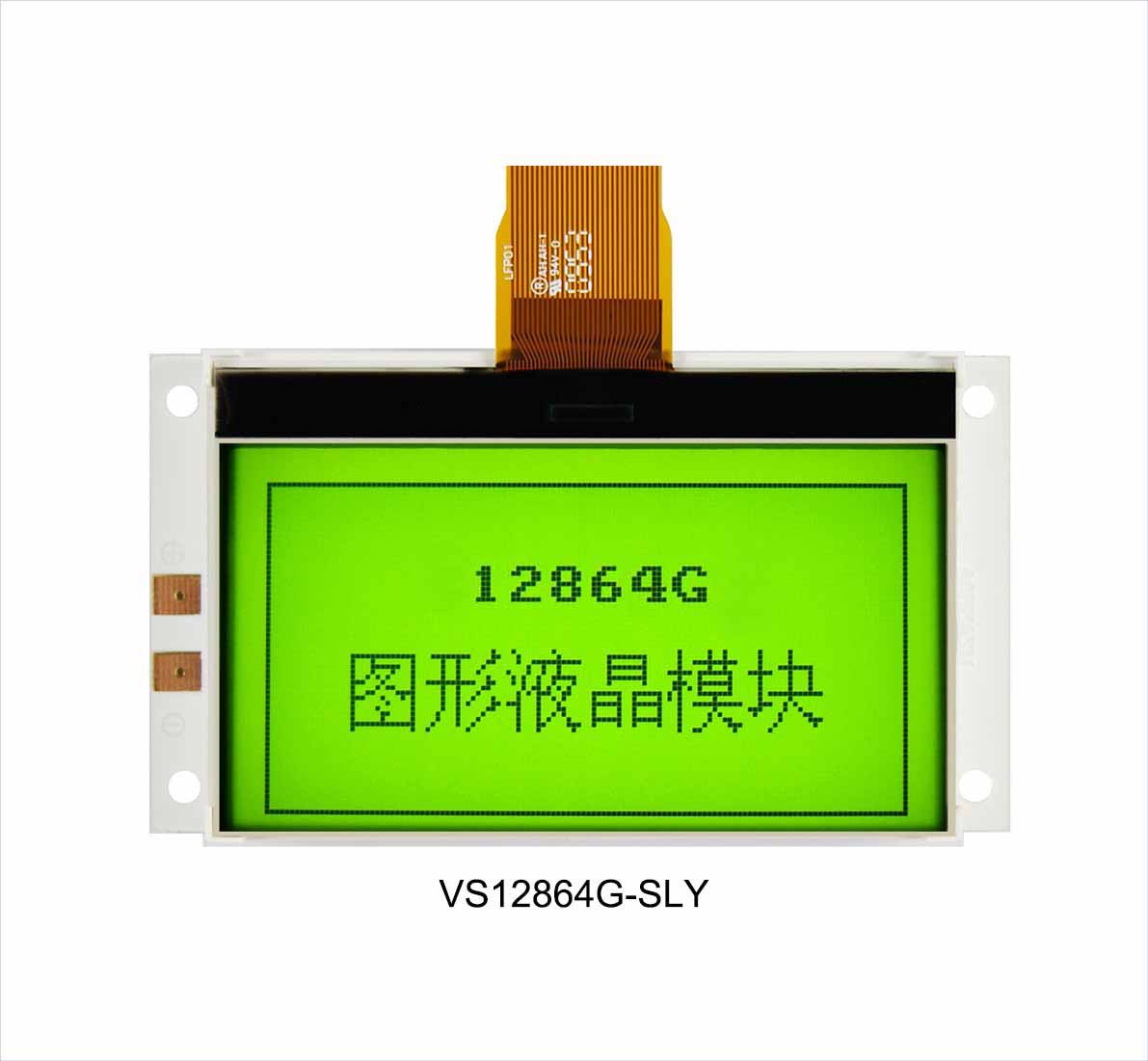

128x64 VS12864G-LY 89.7x49.8x11.8 66.8x35.5 0.50x0.50 0.48x0.48 Y-G 8-BIT 68/80 3-5.5 SPLC501C
128x64 VS12864H-DW 44.5x39.5x8.5 39.0x28.0 0.282x0.36 0.252x0.33 White 8-BIT 6800, SPI 3.3 ST7565P
128x64 VS12864J-DW 51.0x38.0x8.5 46.0x26.0 0.345x0.36 0.315x0.33 White 8-BIT 8080, SPI 3.3 ST7565P

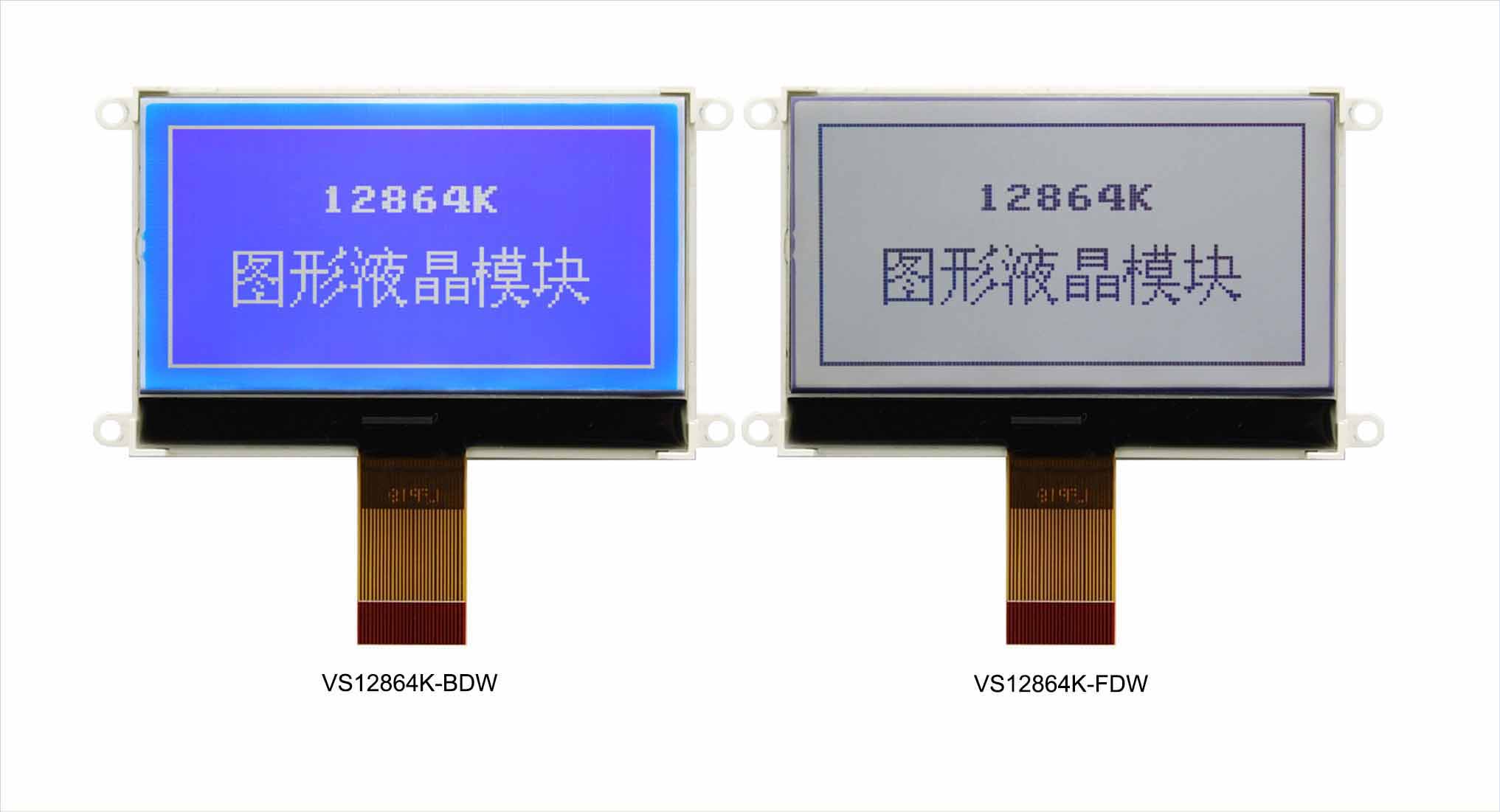

128x64 VS12864K-DW 87.0x50.0x8.0 70.0x37.0 0.51x0.51 0.495x0.495 White 8-BIT 8080, SPI 3.3 ST7565P
128x64 VS12864L-DW 76.0x50.0x8.1 70.0x37.0 0.51x0.51 0.495x0.495 White 8-BIT 8080, SPI 3.3 ST7565P
128x64 VS12864L-DW-TP 76.0x50.0x8.1 70.0x37.0 0.51x0.51 0.495x0.495 White 8-BIT 8080, SPI 3.3 ST7565P

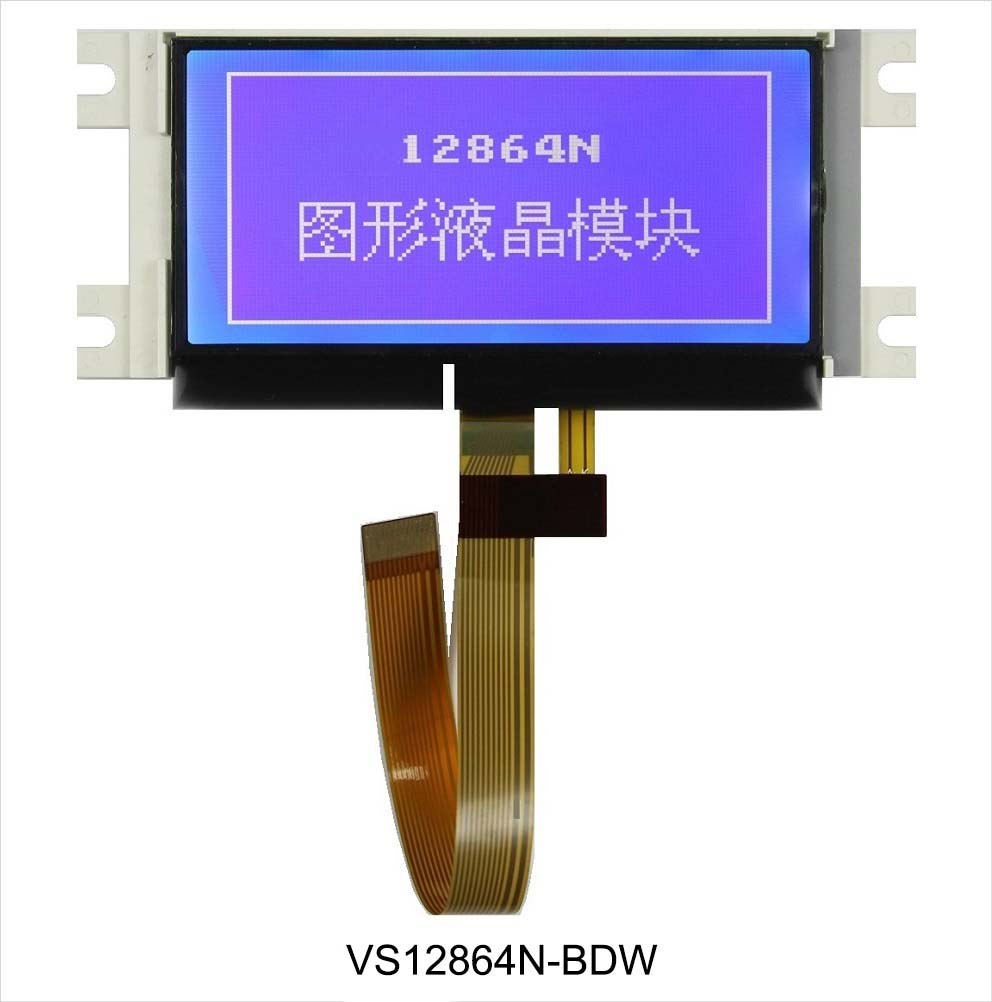

128x64 VS12864N-DW 84.0x37.8x5.5 61.4x28.3 0.42x0.38 0.40x0.36 White SPI 3.3 ST7567
128x64 VS12864R-DW 63.0x40.0x10.0 46.0x26.0 0.345x0.36 0.315x0.33 White SPI 3.3-5.5 ST7565P
128x64 VS12864S-DW 45.0x50.0x10.0 39.0x28.0 0.282x0.36 0.252x0.33 White SPI 3.3-5.5 ST7965P
128x64 VS12864T-DW 66.0x56.0x10.0 58.6x31.0 0.43x0.43 0.41x0.41 White 8-BIT 8080, SPI 3.3-5.5 ST7565P

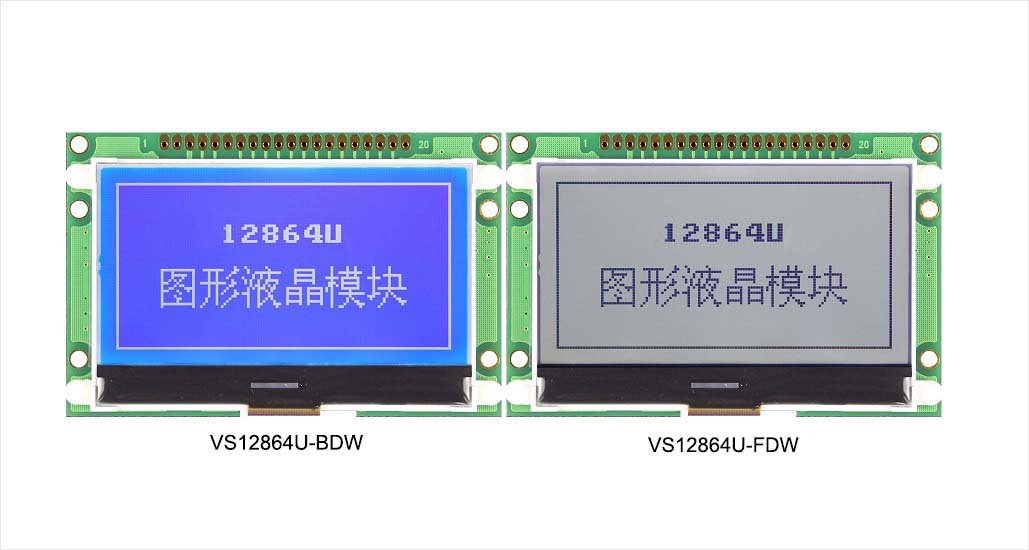

128x64 VS12864U-DW 87.0x57.0x9.5 70.0x37.0 0.51x0.51 0.495x0.495 White 8-BIT 8080, SPI 3.3-5.5 ST7565P

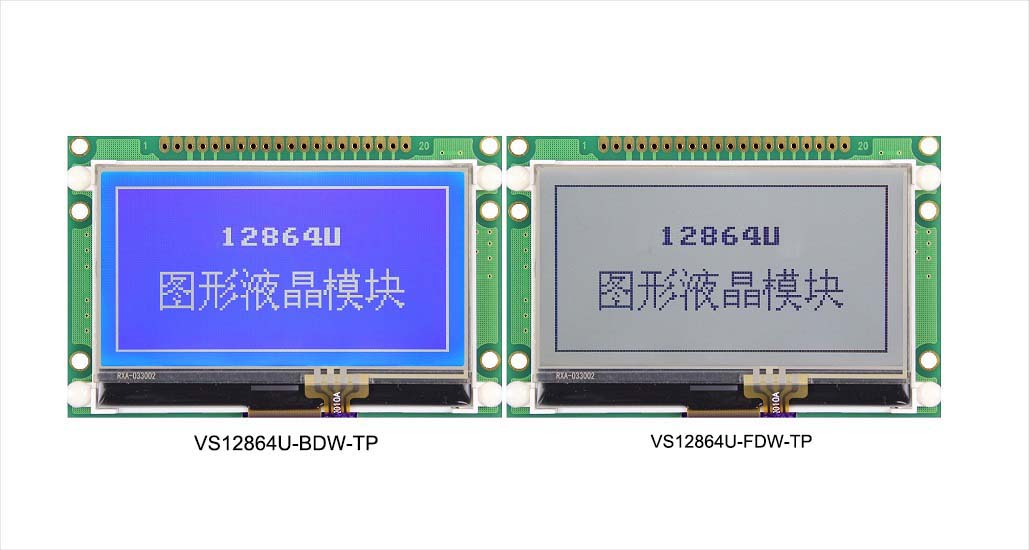

128x64 VS12864U-DW-TP 87.0x57.0x10.5 70.0x37.0 0.51x0.51 0.495x0.495 White 8-BIT 8080, SPI 3.3-5.5 ST7565P
132x64 VS132641-DW 67.4x34.9x5.0 59.0x26.0 0.41x0.34 0.37x0.30 White 8-BIT 68/80, SPI 3.3 NT7534H
132x64 VS132642-DW 84.0x37.0x9.5 59.0x26.0 0.41x0.34 0.37x0.30 White 8-BIT 8080, SPI 3.3-5.5 NT7534H
132x64 VS132643-DW 79.3x47.8x15.15 72.0x36.5 0.52x0.52 0.50x0.50 White SPI 3.3 ST7567

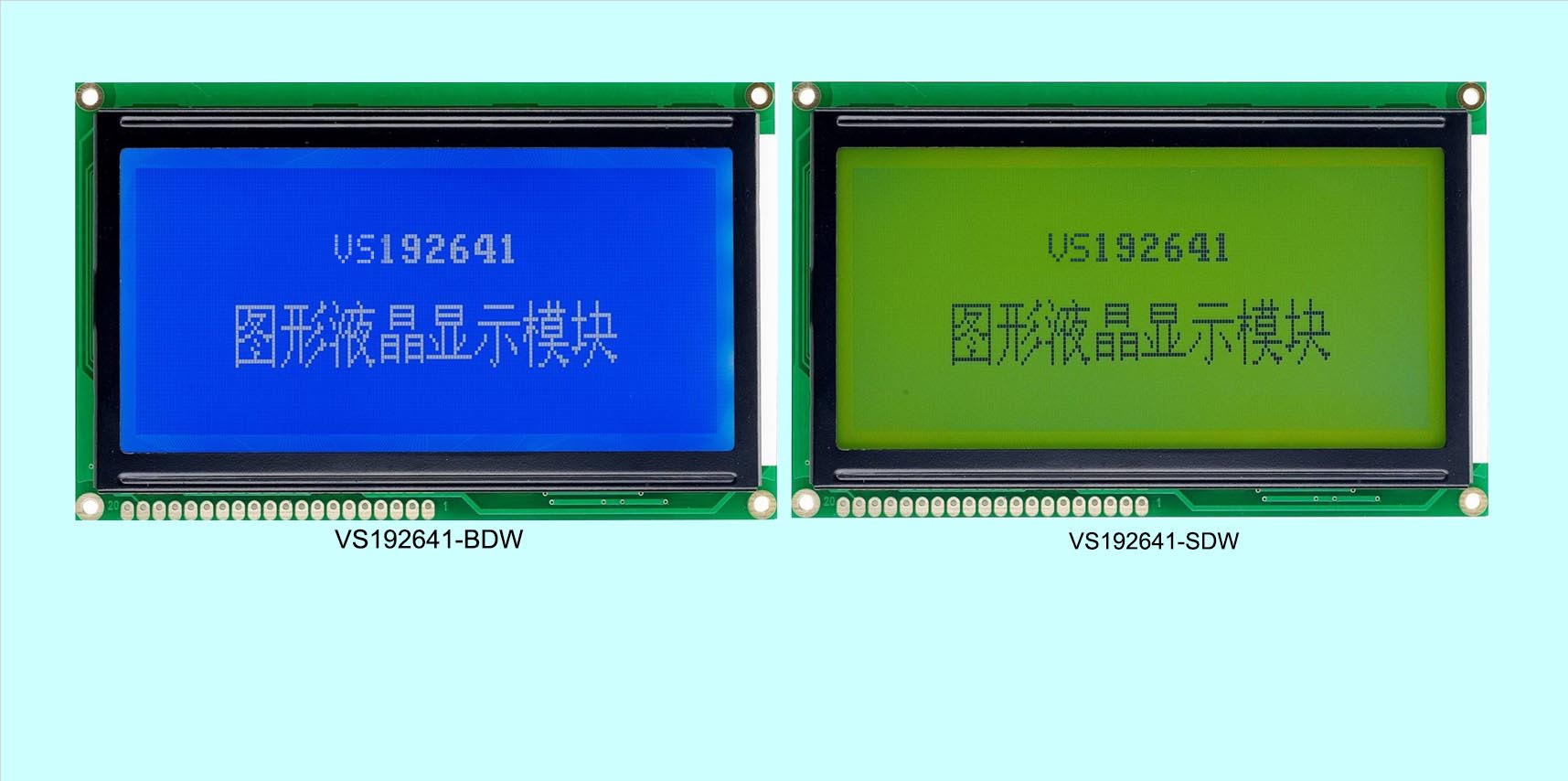

192x64 VS192641-DW 113.0x71.0x13.0 97.0x48.0 0.48x0.66 0.44x0.62 White 8-BIT 6800 5 NT7108C
192x64 VS192642-DW 130.0x65.0x13.0 104.0x39.0 0.51x0.51 0.46x0.46 White 8-BIT 6800 5 NT7108C
192x64 VS192643-DW 100.0x60.0x12.5 84.0x31.0 0.41x0.41 0.37x0.37 White 8-BIT 6800 5 NT7108C

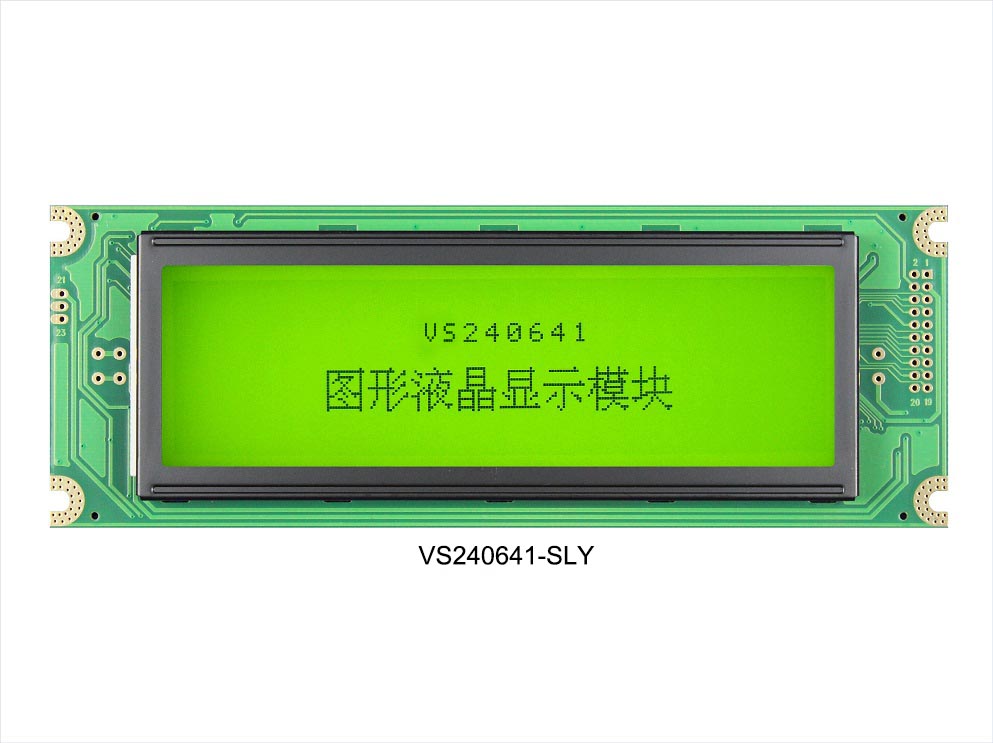

240x64 VS240641-LY 180.0x65.0x15.5 132.0x39.0 0.53x0.53 0.49x0.49 Y-G 8-BIT 8080 5 T6963C
240x64 VS240641-DW 180.0x65.0x13.0 132.0x39.0 0.53x0.53 0.49x0.49 White 8-BIT 8080 5 T6963C

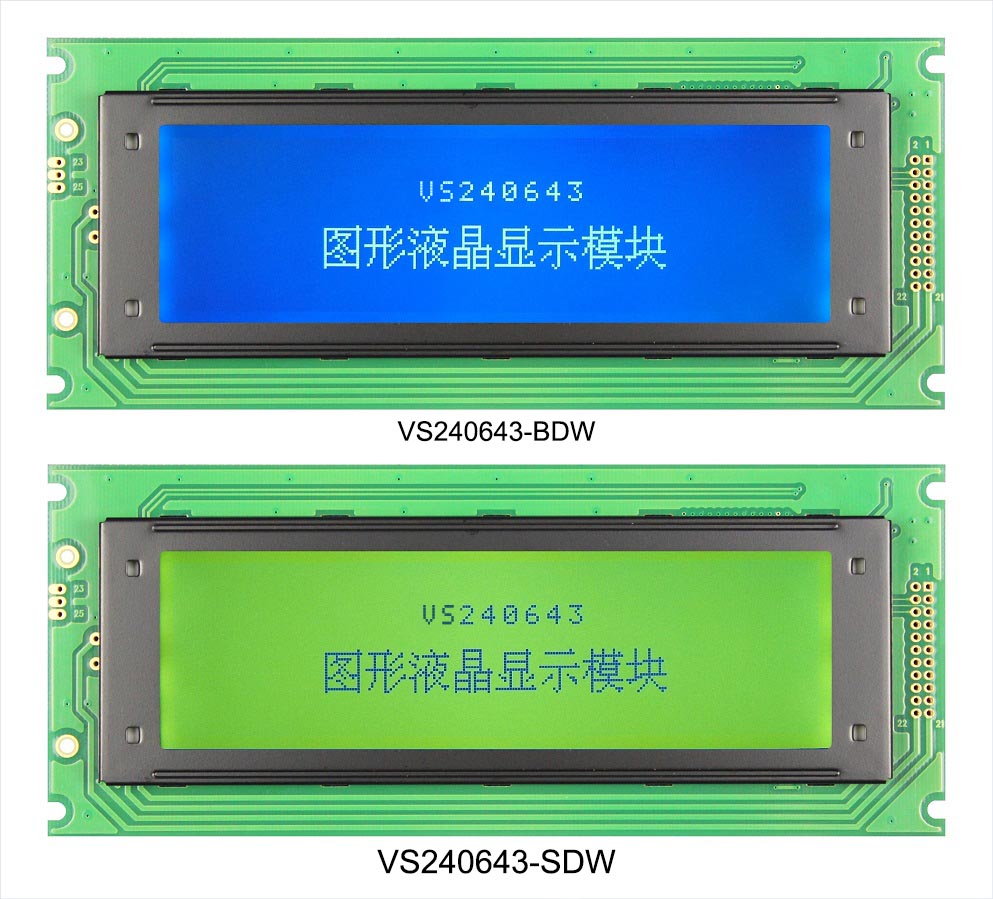

240x64 VS240643-DW 180.0x75.0x12.5 132.0x39.0 0.53x0.53 0.49x0.49 White 8-BIT 6800 5 NT7108C
240x64 VS240644-DW 104.0x40.2x8.5 91.0x27.2 0.36x0.38 0.34x0.36 White 8-BIT 68/80, SPI 3.3 UC1698u
240x64 VS240645-DW 120.0x40.5x10.5 91.0x27.2 0.36x0.38 0.34x0.36 White 8-BIT 68/80, SPI 3.3-5.5 UC1698u
256x64 VS256642-DW 90.0x29.8x9.5 84.0x18.4 0.30x0.23 0.28x0.21 White SPI 3.3 UC1698u

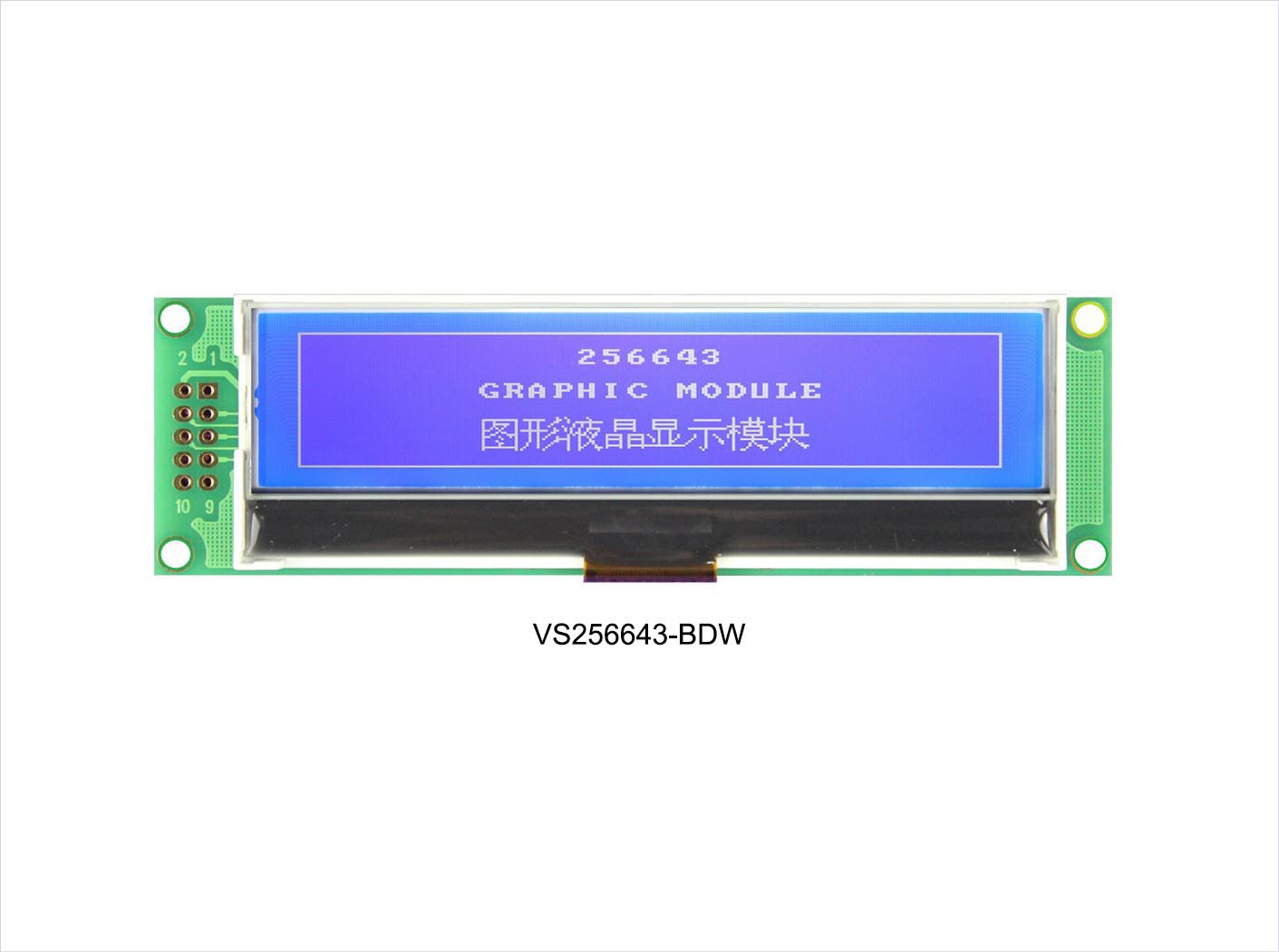

256x64 VS256643-DW 106.0x31.0x11.5 84.0x18.4 0.30x0.23 0.28x0.21 White SPI 3.3-5.5 UC1698u
144x80 VS144801-DW 56.0x39.6x9.2 50.4x28.0 0.33x0.33 0.31x0.31 White SPI 3.3 RW1092R
160x96 VS160961-DW 50.0x40.0x8.5 44.0x29.0 0.24x0.26 0.22x0.24 White 8-BIT 68/80, SPI, I2C 3.3 UC1638c
160x96 VS160962-DW 50.0x40.0x8.5 44.0x29.0 0.24x0.26 0.22x0.24 White I2C 3.3 UC1638c
192x96 VS192961-DW 87.0x50.0x8.0 70.0x37.0 0.34x0.34 0.32x0.32 White 8-BIT 68/80, SPI, I2C 3.3 UC1638c
192x96 VS192962-DW 87.0x57.0x9.5 70.0x37.0 0.34x0.34 0.32x0.32 White 8-BIT 68/80, SPI 3.3-5.5 UC1638c
192x96 VS192962-DW-V33 87.0x57.0x9.5 70.0x37.0 0.34x0.34 0.32x0.32 White 8-BIT 68/80, SPI, I2C 3.3 UC1638c
128x128 VS1281281-DW 85.0x100.0x14.0 62.0x62.0 0.43x0.43 0.39x0.39 White 8-BIT 8080 5 T6963C
128x128 VS1281282-DW 88.4x88.4x13.0 67.0x67.0 0.50x0.50 0.46x0.46 White 8-BIT 8080 5 T6963C
160x128 VS1601281-DW 129.0x102.0x13.0 101.0x82.0 0.58x0.58 0.54x0.54 White 8-BIT 8080 5 T6963C

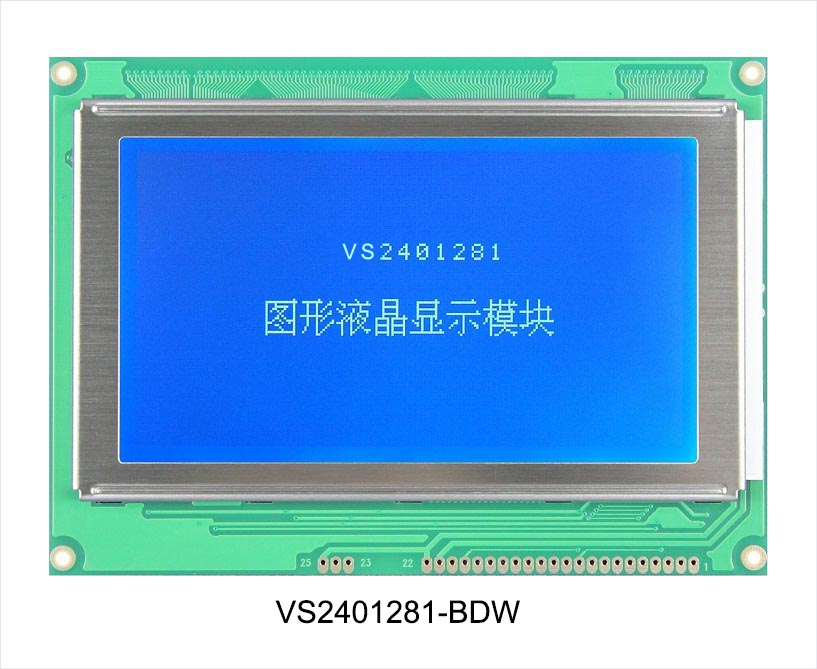

240x128 VS2401281-DW 144.0x104.0x13.0 114.0x64.0 0.45x0.45 0.40x0.40 White 8-BIT 8080 5 T6963C

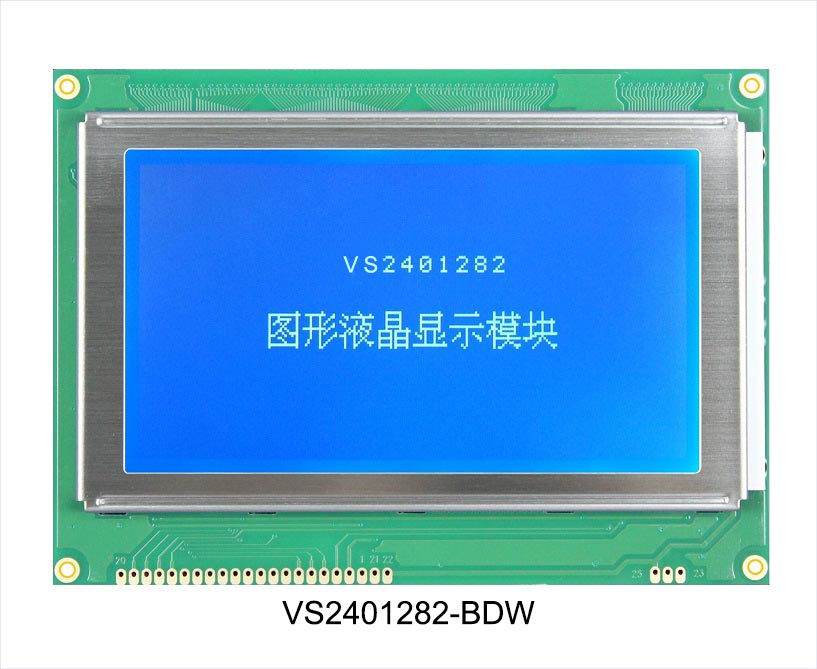

240x128 VS2401282-DW 144.0x104.0x13.0 114.0x64.0 0.45X0.45 0.40X0.40 White 8-BIT 8080 5 T6963C

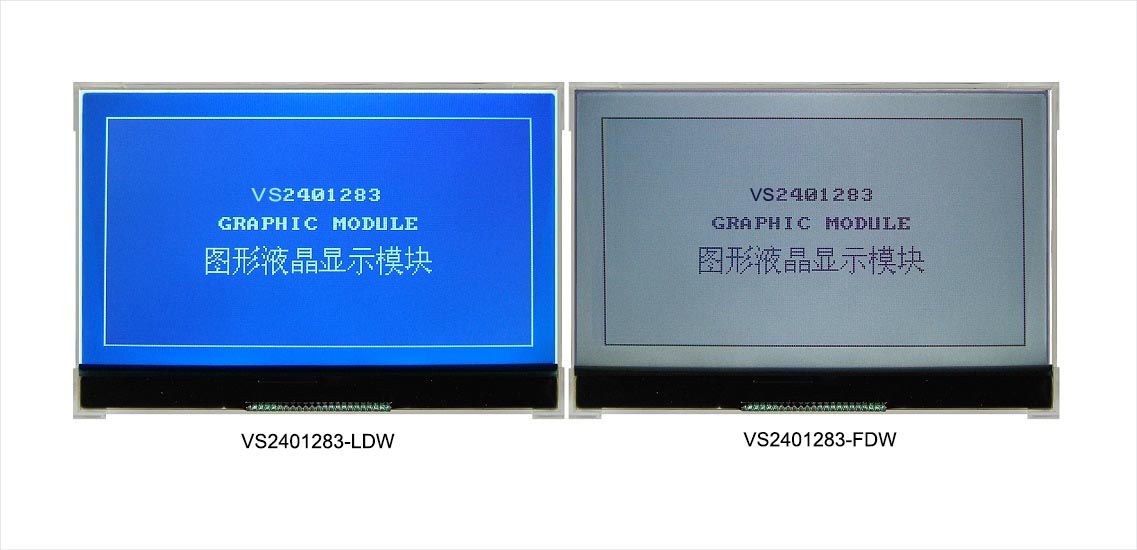

240x128 VS2401283-DW 98.7x67.7x10.5 92.0x52.0 0.35x0.35 0.325x0.325 White 8-BIT 68/80, SPI 3.3 UC1608x
240x128 VS2401283-DW-TP 98.7x67.7x11.8 92.0x52.0 0.35x0.35 0.325x0.325 White 8-BIT 68/80, SPI 3.3 UC1608x
240x128 VS2401285-DW 98.7x67.7x9.6 92.0x52.0 0.35x0.35 0.325x0.325 White 8-BIT 68/80, SPI 3.3 UC1608x
240x128 VS2401285-DW-TP 98.7x67.7x10.9 92.0x52.0 0.35x0.35 0.325x0.325 White 8-BIT 68/80, SPI 3.3 UC1608x
240x128 VS2401286-DW 100.0x85.0x12.5 92.0x52.0 0.35x0.35 0.325x0.325 White 8-BIT 68/80, SPI 3.3-5.5 UC1608x
240x128 VS2401286-DW-TPC 100.0x85.0x12.5 92.0x52.0 0.35x0.35 0.325x0.325 White 8-BIT 68/80, SPI 3.3-5.5 UC1608x
240x128 VS2401289-DW 144.0x104.0x13.0 114.0x64.0 0.45x0.45 0.40x0.40 White 8-BIT 68/80 5 RA8806
160x160 VS1601601-DW 62.0x69.0x9.6 55.0x55.0 0.30x0.30 0.28x0.28 White 4/8-BIT 68/80, SPI, I2C 3.3 UC1611s
160x160 VS1601601-DW-TP 62.0x69.0x9.6 55.0x53.5 0.30x0.30 0.28x0.28 White 4/8-BIT 68/80, SPI, I2C 3.3 UC1611s

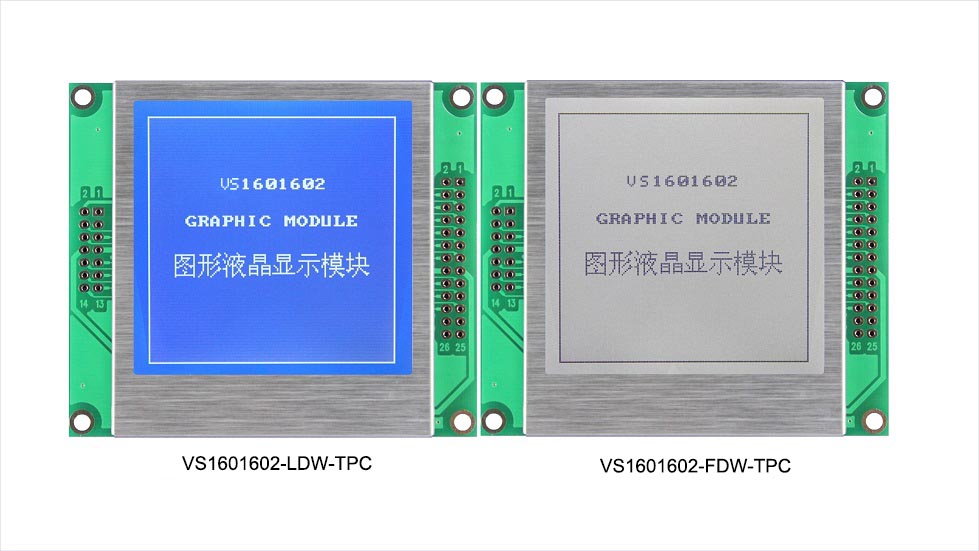

160x160 VS1601602-DW-V33 82.0x71.0x12.0 54.0x53.0 0.30x0.30 0.28x0.28 White 4/8-BIT 68/80, SPI, I2C 3.3 UC1611s
160x160 VS1601602-DW-33TPC 82.0x71.0x12.0 54.0x53.0 0.30x0.30 0.28x0.28 White 4/8-BIT 68/80, SPI, I2C 3.3 UC1611s
160x160 VS1601604-DW 65.8x71.6x9.1 60.0x60.0 0.34x0.34 0.32x0.32 White 8-BIT 68/80 3.3 UC1698u
160x160 VS1601605-DW 80.0x74.0x9.0 60.0x60.0 0.34x0.34 0.32x0.32 White 8-BIT 8080 3.3-5.5 UC1698u
320x240 VS3202402-DW 160.0x109.0x13.5 122.0x92.0 0.36x0.36 0.33x0.33 White 4-BIT 3.3-5.5 None
320x240 VS3202403-DW 139.0x106.0x13.0 103.0x79.0 0.30x0.30 0.27x0.27 White 8-BIT 68/80 3.3-5.5 RA8835A
320x240 VS3202404-DW 139.0x106.0x13.0 103.0x79.0 0.30x0.30 0.27x0.27 White 4-BIT 3.3-5.5 None

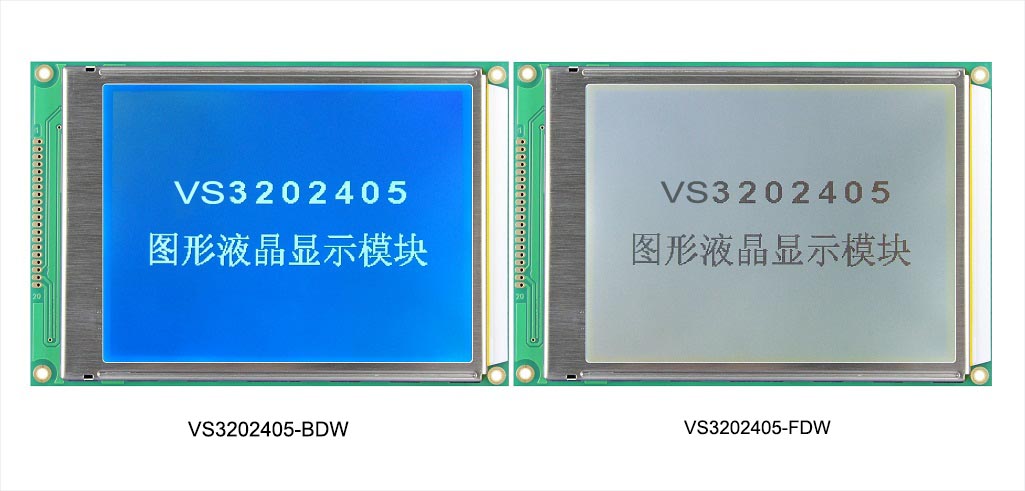

320x240 VS3202405-DW 160.0x109.0x13.5 122.0x92.0 0.36x0.36 0.33x0.33 White 8-BIT 68/80 3.3-5.5 RA8835A
320x240 VS320240A-DW 148.0x120.0x13.5 122.0x92.0 0.36x0.36 0.33x0.33 White 8-BIT 68/80 3.3-5.5 RA8835A
320x240 VS320240C-DW 139.0x106.0x13.0 103.0x79.0 0.30x0.30 0.27x0.27 White 8-BIT 68/80 3.3-5.5 RA8806
320x240 VS320240D-DW 160.0x109.0x13.5 122.0x92.0 0.36x0.36 0.33x0.33 White 8-BIT 68/80 3.3-5.5 RA8806
