| Resolution | Size (inch) |
Photos | Part No. | Outline Dimension WxHxT (mm) |
Viewing Area WxH (mm) |
Pixel Size WxH (mm) |
Touch Screen | Interface | Voltage (V) |
Controller |
|---|---|---|---|---|---|---|---|---|---|---|
| 240x320 | 2.8 |  |
VS028A-01A | 50.0x69.2x3.2 | 45.2x59.6 | 43.2x57.6 | - | 8/16-BIT MCU | 3.3 | ST7789V2 |
| 240x320 | 2.8 |  |
VS028A-01AT | 50.0x69.2x4.3 | 45.2x59.6 | 43.2x57.6 | RTP | 8/16-BIT MCU | 3.3 | ST7789V2 |
| 320x240 | 3.5 |  |
VS035B-33D | 94.0x80.0x9.8 | 72.4x54.6 | 70.08x52.56 | - | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 3.5 |  |
VS035B-33DT | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 3.5 |  |
VS035B-33DTC | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 3.5 |  |
VS035B-50D | 94.0x80.0 x9.8 | 72.4x54.6 | 70.08x52.56 | - | 8-BIT MCU | 3.3-5.5 | SSD1926 |
| 320x240 | 3.5 |  |

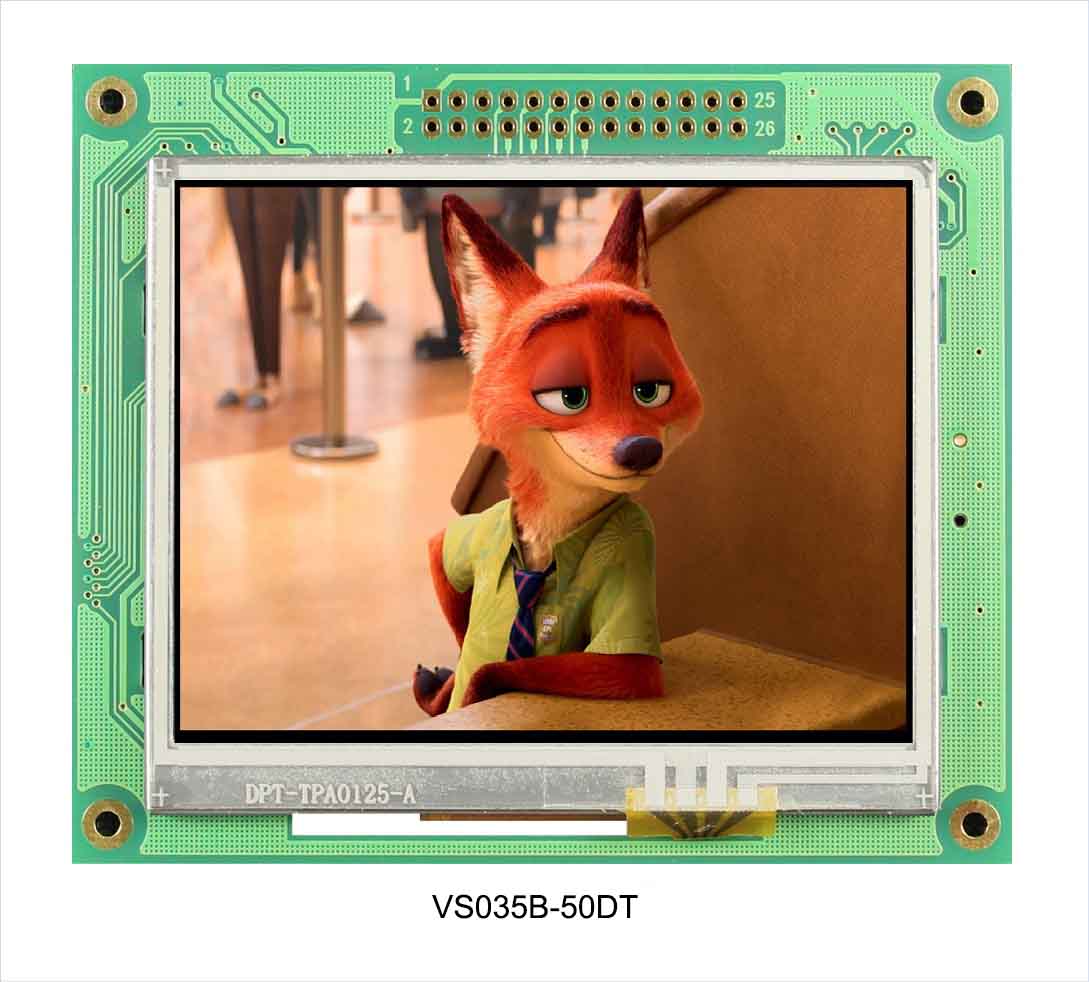

VS035B-50DT | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3-5.5 | SSD1926 |
| 320x240 | 3.5 |  |
VS035B-50DTC | 94.0x80.0x11.0 | 72.4x54.6 | 70.08x52.56 | RTP | 8-BIT MCU | 3.3-5.5 | SSD1926 |
| 480x272 | 4.3 |  |
VS043C-33A | 117.0x80.2x9.5 | 97.6x56.6 | 95.04x53.86 | - | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |
VS043C-33AT | 117.0x 80.2x10.5 | 97.6x56.6 | 95.04x53.86 | RTP | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |
VS043C-50A | 117.0x80.2x9.5 | 97.6x56.6 | 95.04x53.86 | - | 8/16-BIT MCU, SPI | 3.3-5.5 | RA8875 |
| 480x272 | 4.3 |  |
VS043C-50AT | 117.0x80.2x10.5 | 97.6x56.6 | 95.04 x 53.86 | 8/16-BIT MCU, SPI | 3.3-5.5 | RA8875 | |
| 480x272 | 4.3 |  |
VS043D-33A | 123.0x70.0x9.5 | 97.6x56.6 | 95.04x53.856 | - | 8-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |
VS043D-33AT | 123.0x70.0x10.5 | 97.6x56.6 | 95.04x53.856 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 480x272 | 4.3 |  |

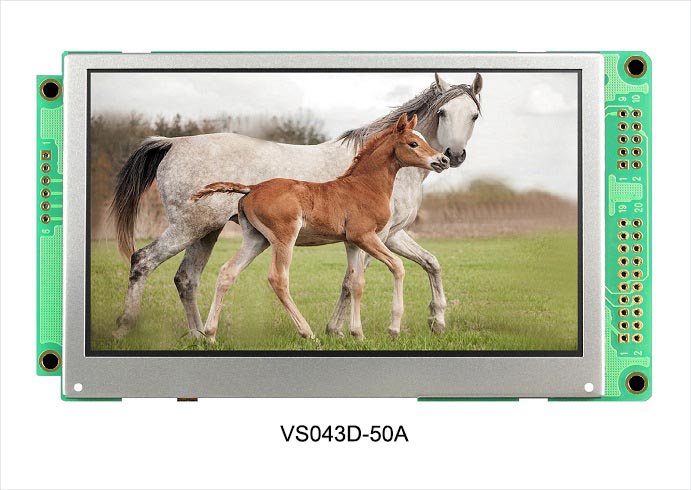

VS043D-50A | 123.0x70.0x9.5 | 97.6x56.6 | 95.04x53.856 | - | 8-BIT MCU, SPI | 3.3-5.5 | RA8875 |
| 480x272 | 4.3 |  |
VS043D-50AT | 123.0x70.0x10.5 | 97.6x56.6 | 95.04x53.856 | RTP | 8-BIT MCU, SPI | 3.3-5.5 | RA8875 |
| 240x128 | 5 |  |
VS050A-02B | 144.0x104.0x14.5 | 113.9 x 65.2 | 110.88x59.136 | - | 8-BIT MCU | 3.3-5.5 | UCi6963 |
| 800x480 | 5 |  |

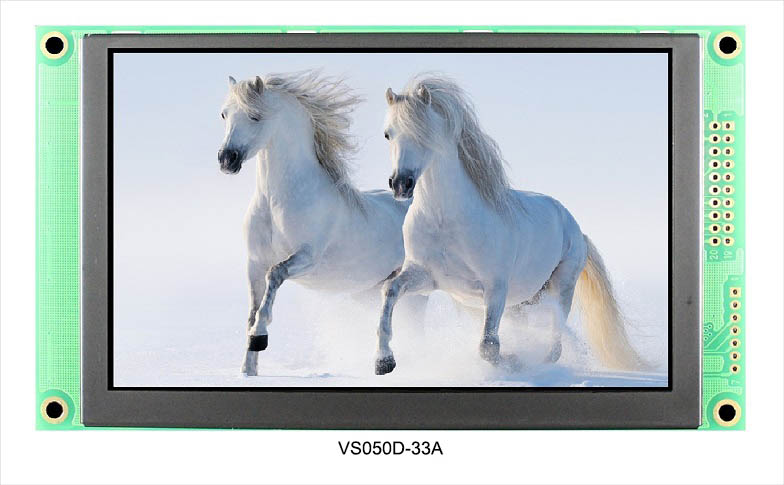

VS050D-33A | 142.0x81.0x11.0 | 110.0x66.8 | 108.0x64.8 | - | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 800x480 | 5 |  |
VS050D-33AT | 142.0x81.0x11.0 | 110.0x66.8 | 108.0x64.8 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 320x240 | 5.7 |  |
VS057A-01A | 126.5x102.0x6.0 | 118.5x89.4 | 115.2x86.4 | - | RGB | 3.3 | HX8218+HX8615 |
| 320x240 | 5.7 |  |
VS057B-33C | 150.0x114.0 X13.0 | 118.0x88.0 | 115.2x86.4 | - | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 5.7 |  |
VS057B-33CT | 150.0x114.0x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 5.7 |  |
VS057B-33CTC | 150.0x114.0x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 3.3 | SSD1926 |
| 320x240 | 5.7 |  |
VS057B-50B | 150.0x114.0x13.0 | 118.0x88.0 | 115.2x86.4 | - | 8-BIT MCU | 5 | SSD1926 |
| 320x240 | 5.7 |  |
VS057B-50BT | 150.0x114.0 x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 5 | SSD1926 |
| 320x240 | 5.7 |  |

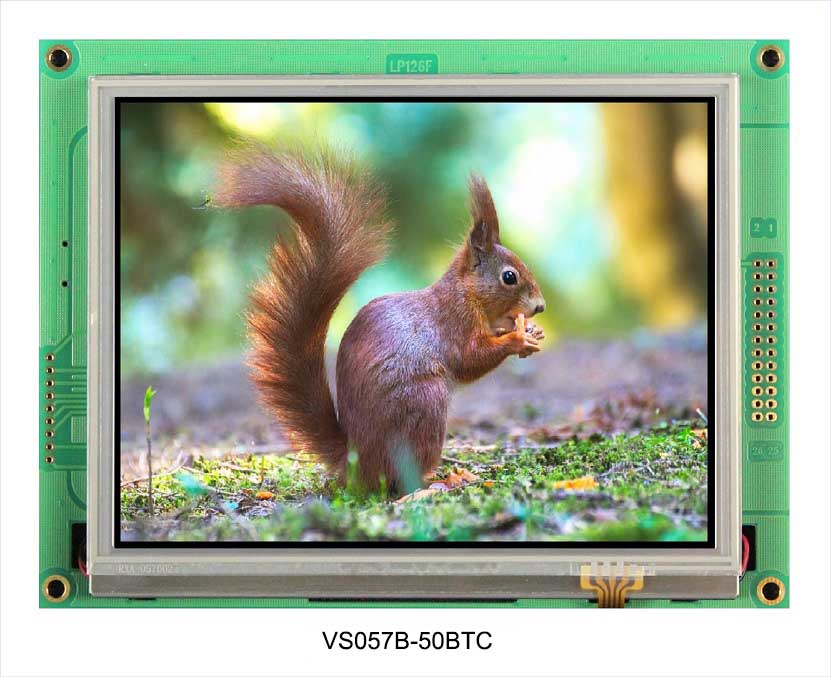

VS057B-50BTC | 150.0x114.0x14.5 | 118.0x88.0 | 115.2x86.4 | RTP | 8-BIT MCU | 5 | SSD1926 |
| 320x240 | 5.7 |  |
VS057D-33A | 160.0x112.0x13.0 | 118.0x88.8 | 115.2x86.4 | - | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 320x240 | 5.7 |  |
VS057D-33AT | 160.0x112.0x14.5 | 118.0x88.8 | 115.2x86.4 | RTP | 8/16-BIT MCU, SPI, I2C | 3.3 | RA8875 |
| 320x240 | 5.7 |  |
VS057D-50A | 160.0x112.0x13.0 | 118.0x88.8 | 115.2x86.4 | - | 8/16-BIT MCU, SPI | 5 | RA8875 |
| 320x240 | 5.7 |  |
VS057D-50AT | 160.0x112.0x14.5 | 118.0x88.8 | 115.2x86.4 | RTP | 8/16-BIT MCU, SPI | 5 | RA8875 |
| 800x480 | 7 |  |
VS070C-33A | 190.0x105.0x12.5 | 156.4x89.0 | 154.08x85.92 | - | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 800x480 | 7 |  |
VS070C-33AT | 190.0x105.0x13.5 | 156.4x89.0 | 154.08x85.92 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | LT7683 |
| 1024x600 | 7 |  |
VS070D-33A | 190.0x105.0x12.5 | 156.4x89.0 | 154.21x85.92 | - | 8-BIT MCU, SPI, I2C | 3.3 | LT7686 |
| 1024x600 | 7 |  |

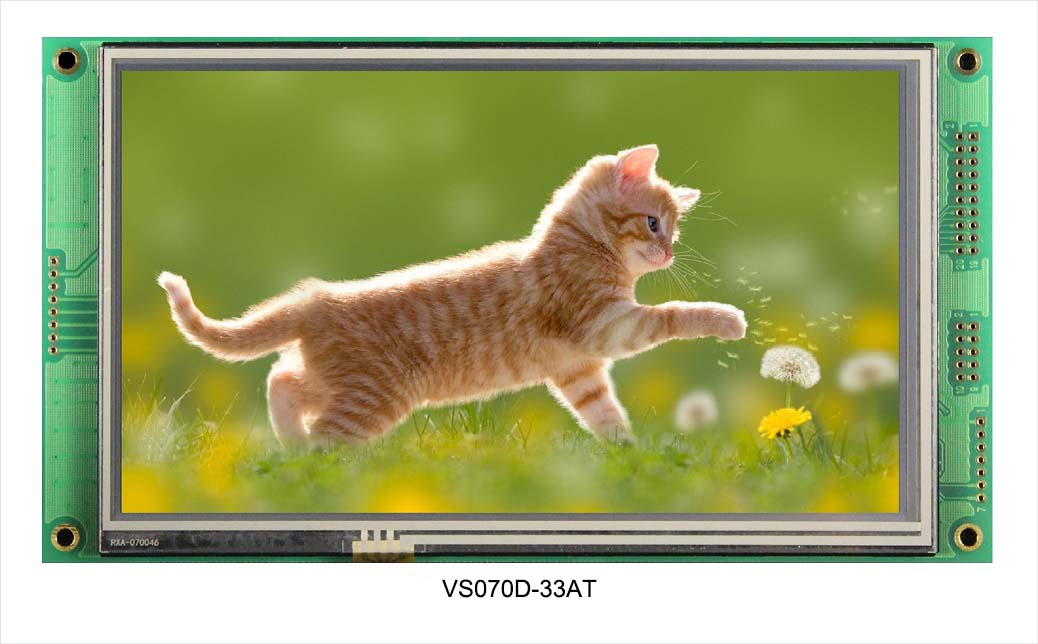

VS070D-33AT | 190.0x105.0x13.5 | 156.4x89.0 | 154.08x85.92 | RTP | 8-BIT MCU, SPI, I2C | 3.3 | LT7686 |
