Character LCD

Resolution Photos Part No. Outline Dimension
WxHxT (mm)
Viewing Area
WxH (mm)
Character Size
WxH (mm)
Dot Size
WxH (mm)
Backlight Interface Voltage
(V)
Controller
8x1 VS0811-DY 84.0x44.0x12.5 64.6x16.0 6.45x10.75 1.25x1.30 Y-G 4/8-BIT 6800 5 SPLC780D1
8x2 VS082H1-LY 40.0x35.4x13.0 30.4x13.9 2.95x4.75 0.55x0.55 Y-G 4/8-BIT 6800 5 SPLC780D1
8x2 VS0821-LY 58.0x32.0x14..0 35.0x15.0 2.45x5.00 0.45x0.50 Y-G 4/8-BIT 6800 5 SPLC780D1
8x2 VS0821-DW 58.0x32.0x14.0 35.0x15.0 2.45x5.00 0.45x0.50 White 4/8-BIT 6800 5 SPLC780D1
8x2 VS0822-DW 36.2x24.0x8.5 31.6x13.0 2.95x5.55 0.55x0.65 White I2C 3.3 or 5 ST7032i
16x1 VS1611-DY 80.0x36.0x12.5 64.6x16.0 3.07x6.56 0.55x0.75 Y-G 4/8-BIT 6800 5 SPLC780D1

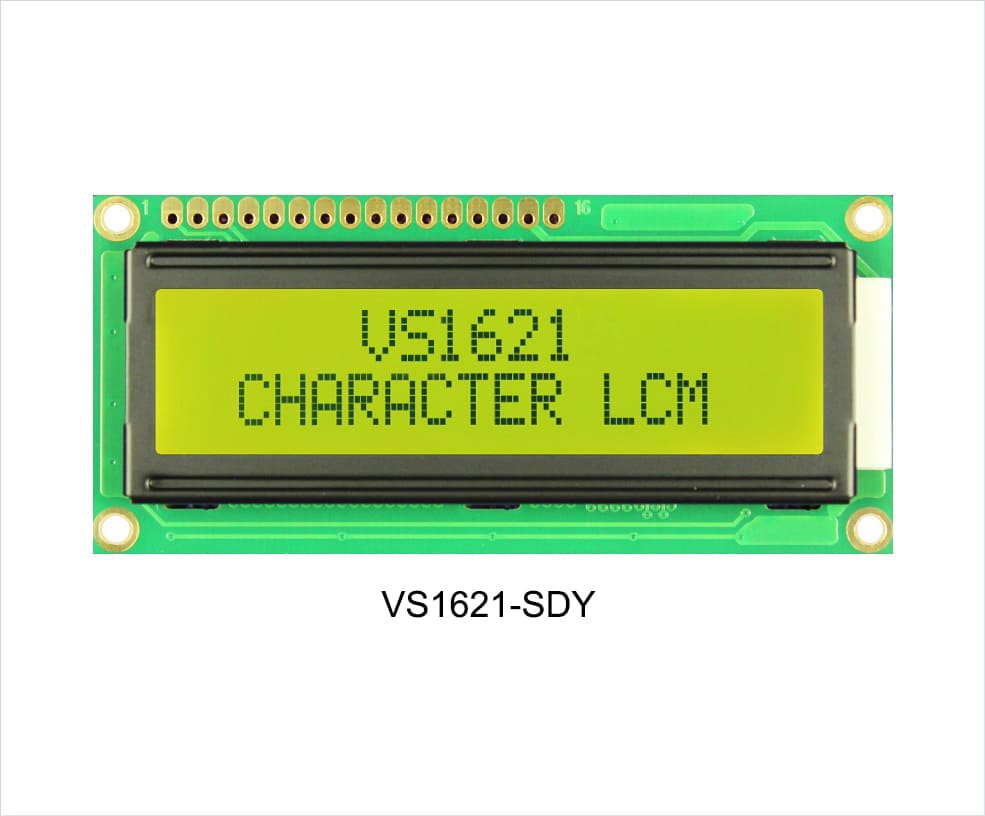

16x2 VS1621-DY 80.0x36.0x12.5 64.6x16.0 2.95x5.55 0.55x0.65 Y-G 4/8-BIT 6800 5 SPLC780D1
16x2 VS1622-LY 122.0x44.0x14.0 99.0x24.0 4.84x9.66 0.92x1.10 Y-G 4/8-BIT 6800 5 SPLC780D1
16x2 VS1622-DW 122.0x44.0x11.5 99.0x24.0 4.84x9.66 0.92x1.10 White 4/8-BIT 6800 5 SPLC780D1
16x2 VS1623-DY 84.0x44.0x12.5 64.6x16.0 2.95x5.55 0.55x0.65 Y-G 4/8-BIT 6800 5 SPLC780D1
16x2 VS1623-DW 84.0x44.0x12.5 64.6x16.0 2.95x5.55 0.55x0.65 White 4/8-BIT 6800 5 SPLC780D1

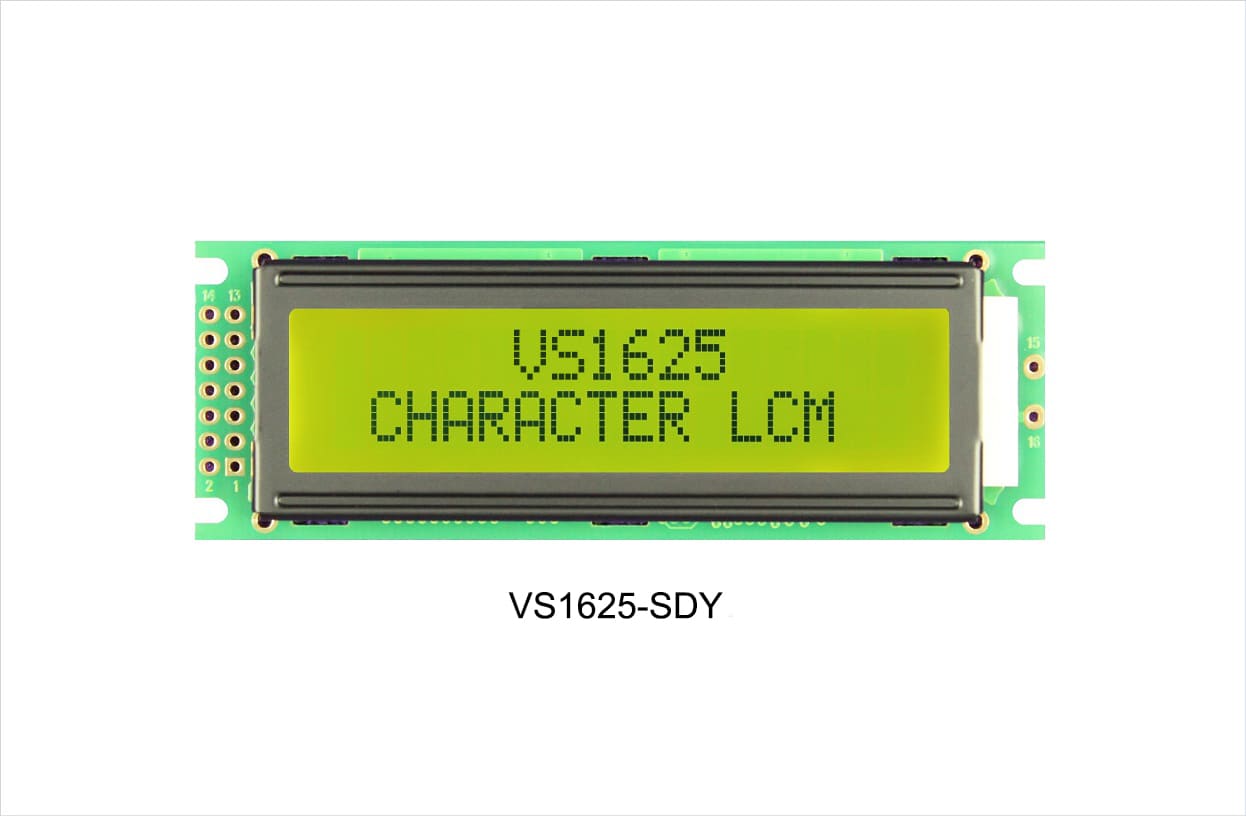

16x2 VS1625-DY 85.0x30.0x12.5 64.6x16.0 2.95x5.55 0.55x0.65 Y-G 4/8-BIT 6800 5 SPLC780D1
16x2 VS1625-DW 85.0x30.0x12.5 64.6x16.0 2.95x5.55 0.55x0.65 White 4/8-BIT 6800 5 SPLC780D1
16x2 VS1628-DW 80.0x36.0x12.5 64.5x16.0 2.96x5.56 0.56x0.66 White 4/8-BIT 6800 5 SPLC780D1
16x2 VS1629-DW 53.0x20.0x9.0 36.0x10.0 1.85x3.15 0.33x0.35 White 4/8-BIT 6800 5 SPLC780D1
16x2 VS162D-DY 115.0x36.0x12.5 64.6x16.0 2.95x5.55 0.55x0.65 Y-G RS232 5 STM8S

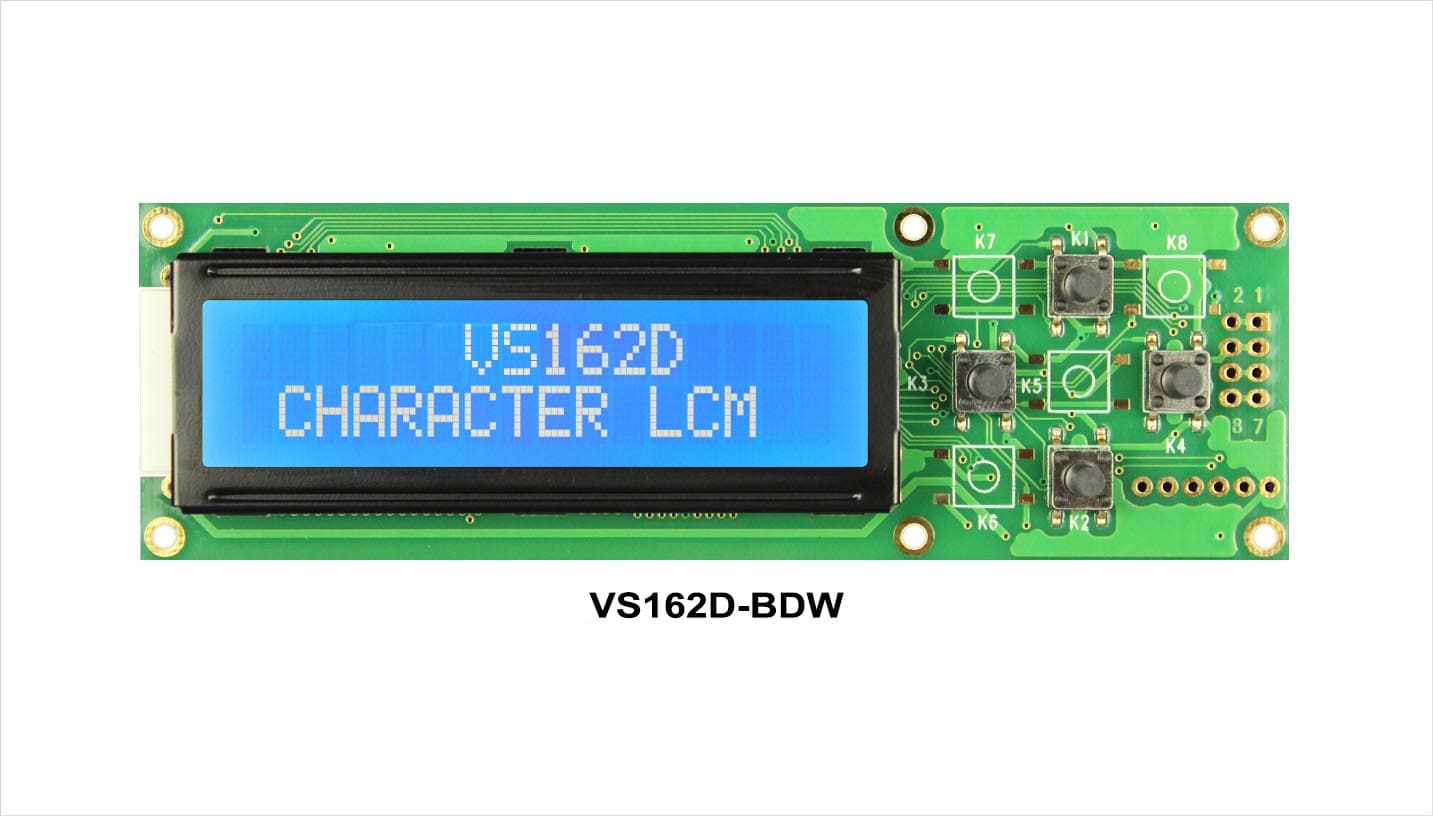

16x2 VS162D-DW 115.0x36.0x12.5 64.6x16.0 2.95x5.55 0.55x0.65 White RS232 5 STM8S
16x2 VS162E-DC 80.0x36.0x12.5 64.5x16.0 2.96x5.56 0.56x0.66 RGB 4/8-BIT 6800 5 SPLC780D1
16x4 VS1641-DY 87.0x60.0x13.5 62.0x26.0 2.95x4.75 0.55x0.55 Y-G 4/8-BIT 6800 5 SPLC780D1
16x4 VS1641-DW 87.0x60.0x13.5 62.0x26.0 2.95x4.75 0.55x0.55 White 4/8-BIT 6800 5 SPLC780D1

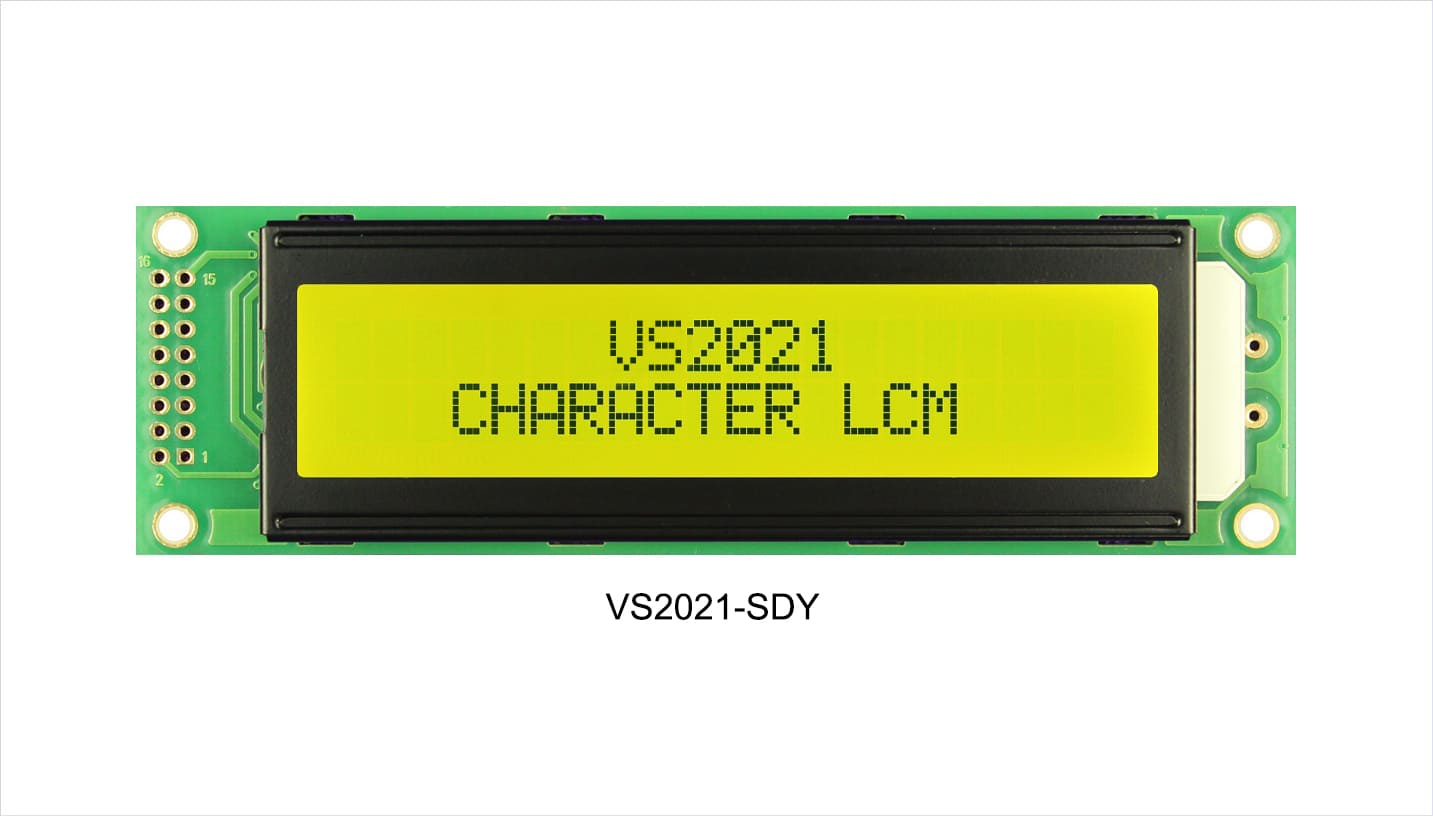

20x2 VS2021-DY 116.0x35.0x13.5 83.0x18.6 3.20x5.55 0.60x0.65 Y-G 4/8-BIT 6800 5 SPLC780D1

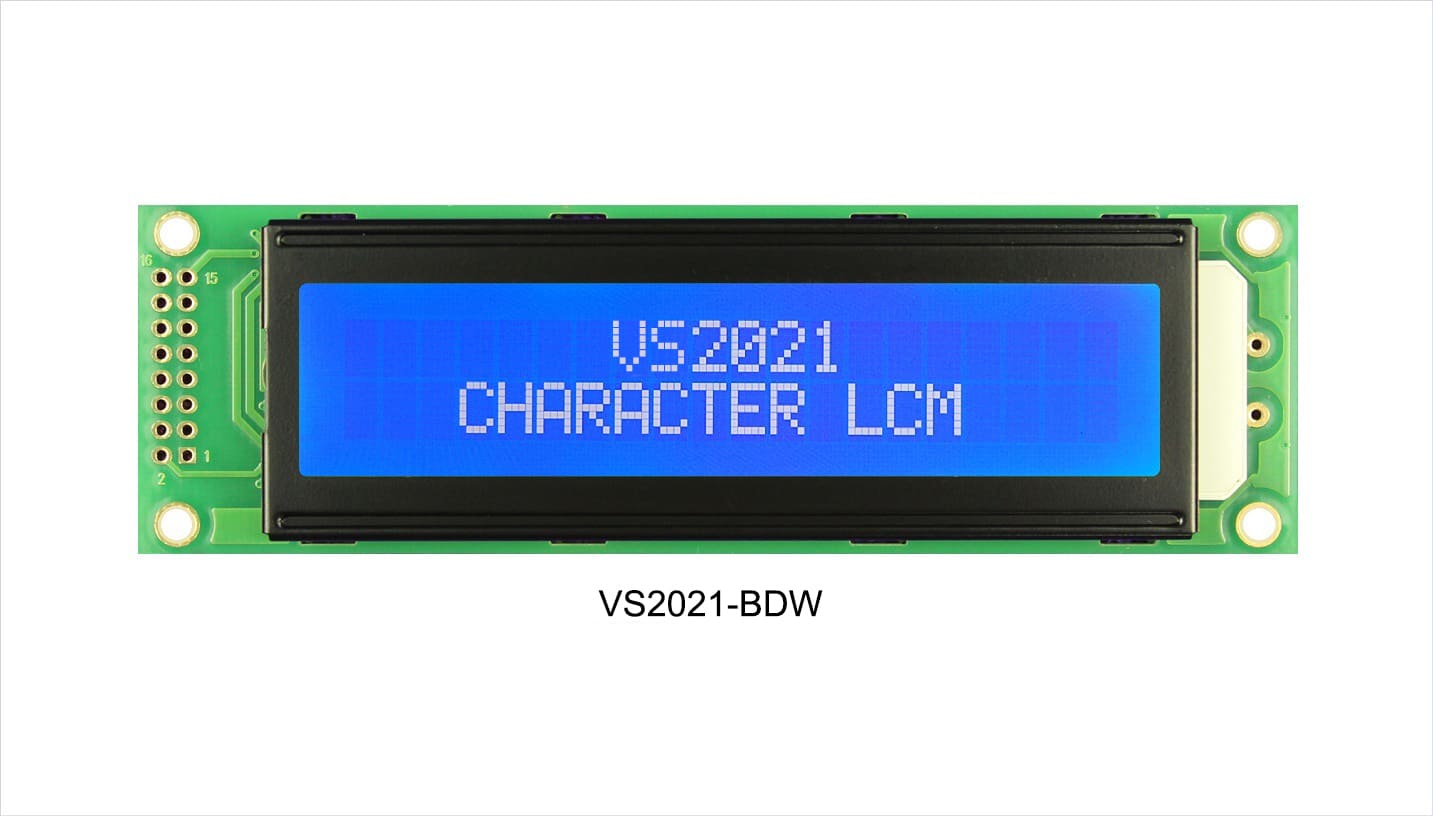

20x2 VS2021-DW 116.0x35.0x13.5 83.0x18.6 3.20x5.55 0.60x0.65 White 4/8-BIT 6800 5 SPLC780D1
20x2 VS2023-DY 116.0x35.0x13.5 83.0x18.6 3.2x5.55 0.6x0.65 Y-G 4/8-BIT 6800 5 SPLC780D1
20x2 VS2023-DW 116.0x35.0x13.5 83.0x18.6 3.2 x 5.55 0.6 x 0.65 White 4/8-BIT 6800 5 SPLC780D1
20x2 VS2024-DY 80.0x36.0x12.5 64.6x16.0 2.50x4.67 0.46x0.54 Y-G 4/8-BIT 6800 5 SPLC780D1
20x4 VS2041-DY 98.0x60.0x13.5 76.0x26.0 2.95x4.75 0.55x0.55 Y-G 4/8-BIT 6800 5 SPLC780D1
20x4 VS2041-DW 98.0x60.0x13.5 76.0x26.0 2.95x4.75 0.55x0.55 White 4/8-BIT 6800 5 SPLC780D1
20x4 VS2042-DY 146.0x62.5x14.0 123.5x43.0 4.84x9.22 0.92x1.10 Y-G 4/8-BIT 6800 5 SPLC780D1
20x4 VS2042-DW 146.0x62.5x14.0 123.5x43.0 4.84x9.22 0.92x1.10 White 4/8-BIT 6800 5 SPLC780D1

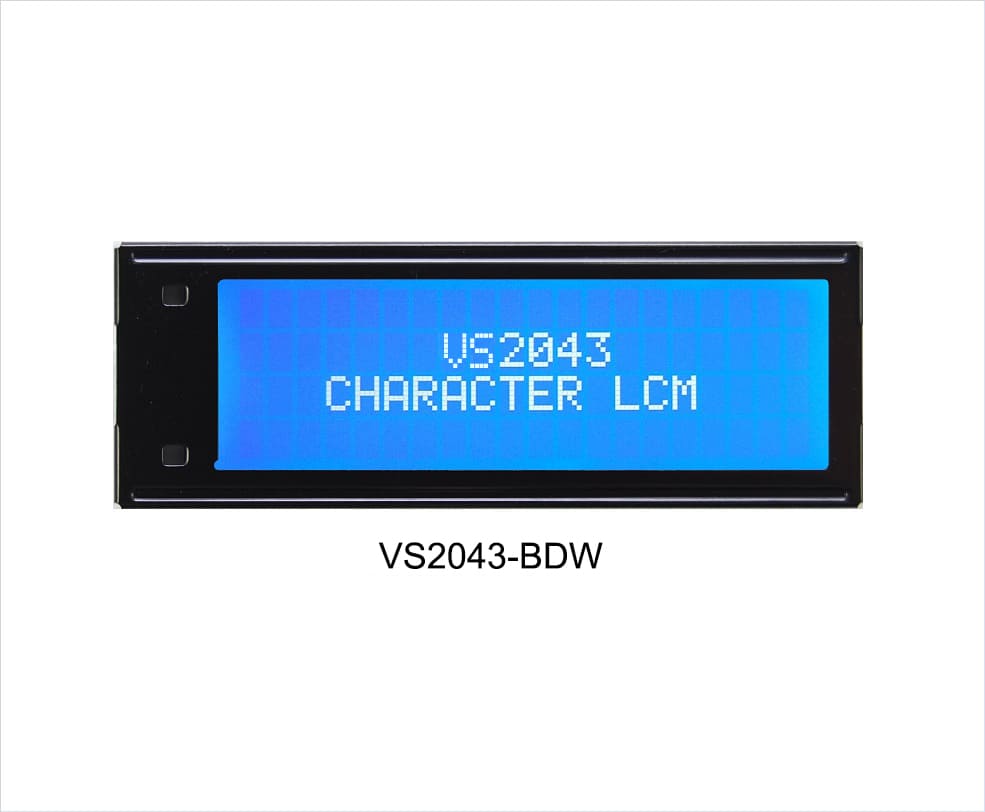

20x4 VS2043-DW 75.0x26.8x14.0 61.0x19.0 2.32x3.73 0.44x0.44 White 4/8-BIT 6800, SPI 3.3-5 S6A0073
24x2 VS2421-DY 118.0x36.0x14.0 93.5x15.8 3.20x5.55 0.60x0.65 Y-G 4/8-BIT 6800 5 SPLC780D1
24x2 VS2421-DW 118.0x36.0x14.0 93.5x15.8 3.20x5.55 0.60x0.65 White 4/8-BIT 6800 5 SPLC780D1
40x2 VS4021-DY 182.0x33.5x14.5 155.0x16.0 3.20x5.55 0.60x0.65 Y-G 4/8-BIT 6800 5 SPLC780D1
40x2 VS4021-DW 182.0x33.5x13.0 155.0x16.0 3.20x5.55 0.60x0.65 White 4/8-BIT 6800 5 SPLC780D1
40x4 VS4041-DY 190.0x54.0x14.5 147.0x29.5 2.78x4.97 0.50x0.56 Y-G 4/8-BIT 6800 5 SPLC780D1
